WS20 Industrial Cable Metal Aviation Plug Connector Gold Plated Copper with PVC Sleeve
The WS20 industrial aviation plug connector is designed for secure power and signal connections in demanding environments. Featuring a high-strength metal housing and gold-plated copper contacts, it ensures excellent conductivity, durability, and corrosion resistance. The connector includes a molded PVC sleeve for cable protection and strain relief, maintaining stable performance even under mechanical vibration or outdoor exposure. With multiple pin configurations and IP67 waterproof protection, the WS20 aviation plug is ideal for use in industrial automation, machinery, lighting, and control systems that require reliable, long-lasting connectivity.
Pins
2 3 4 5 6 7 8 9 12
Product Model
WS20 Aviation plug

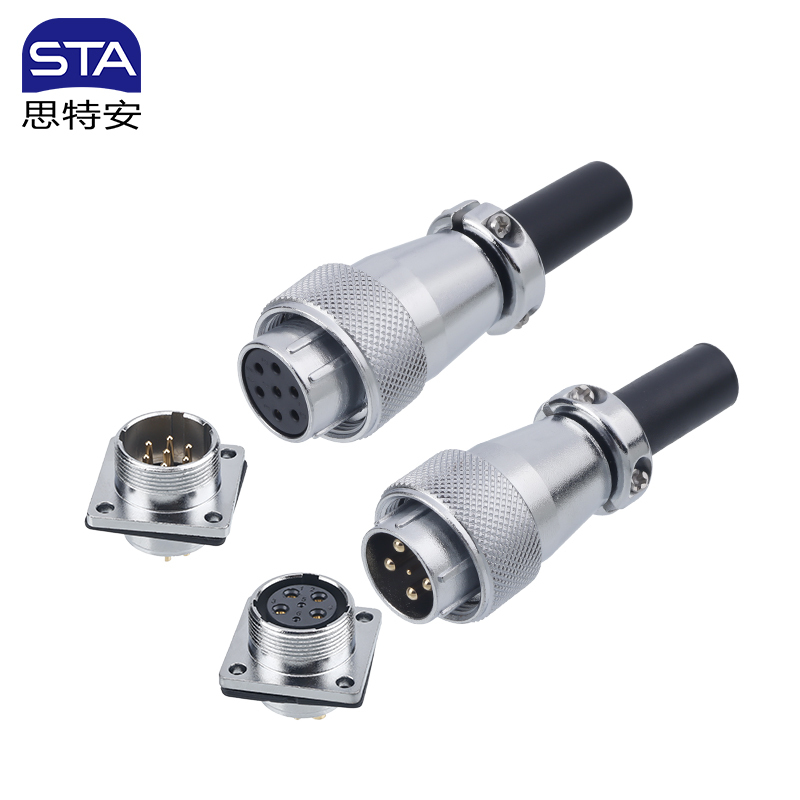

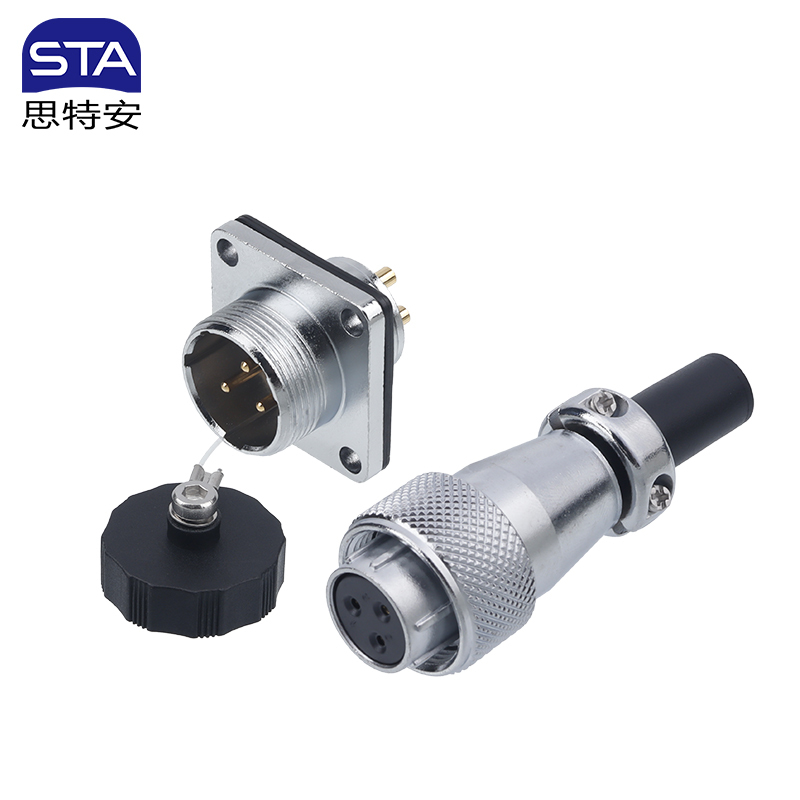

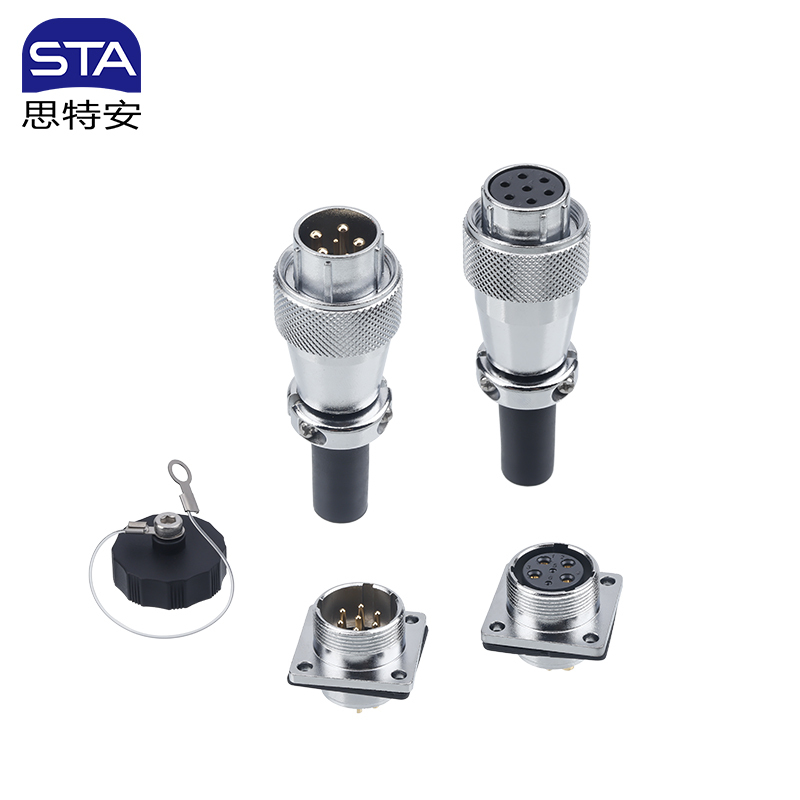

Connection Type

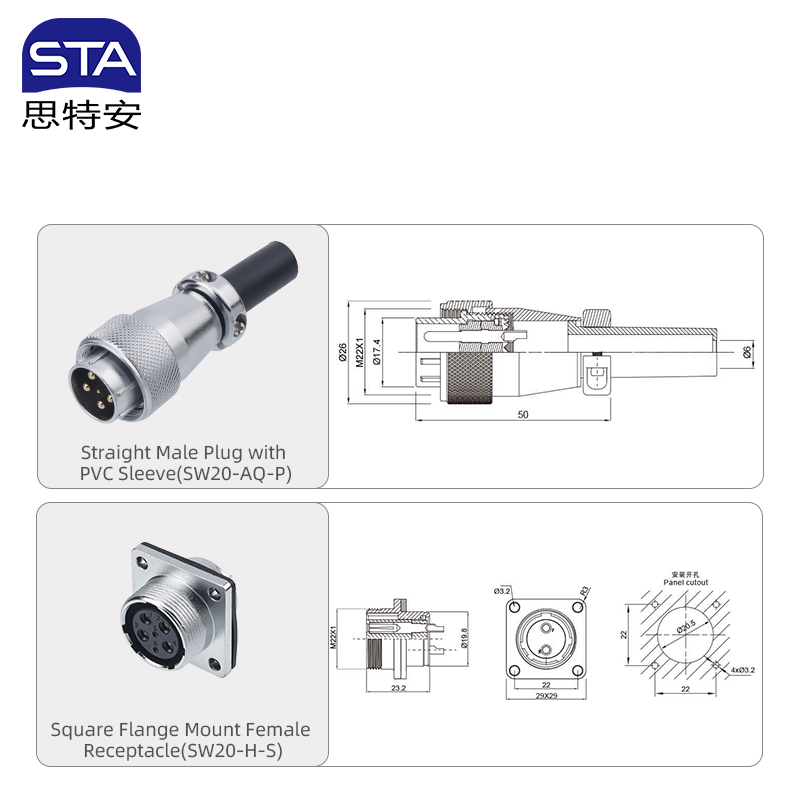

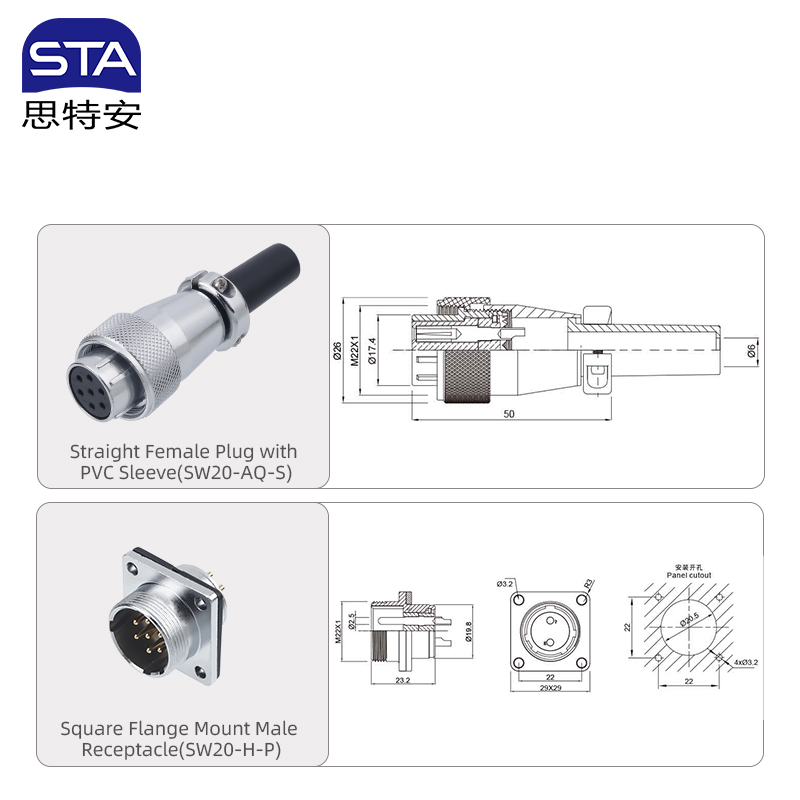

Straight Male / Female Plug with PVC Sleeve

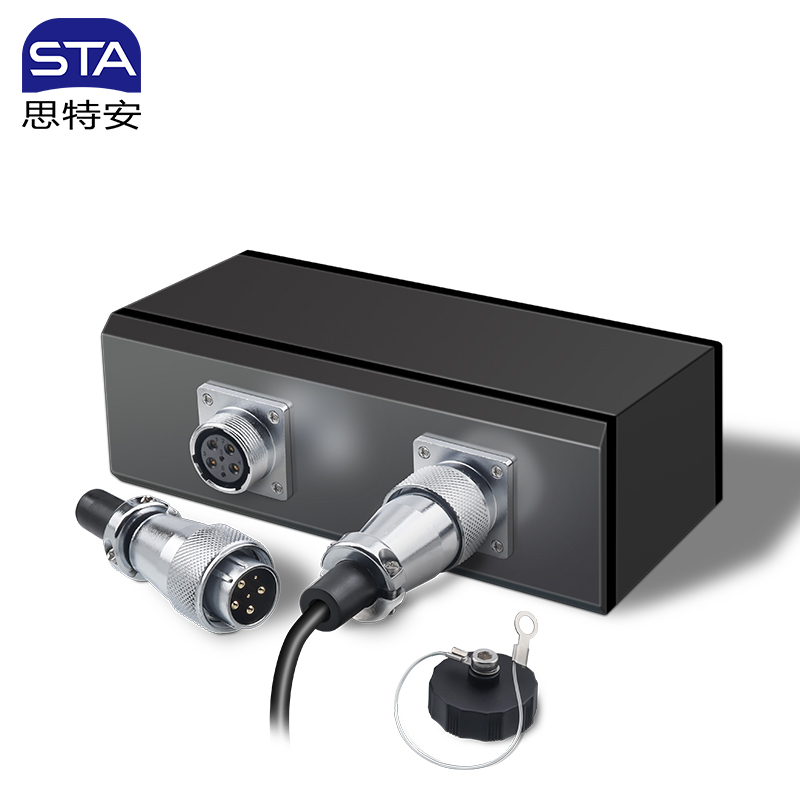

Square Flange Mount Male/Female Receptacle

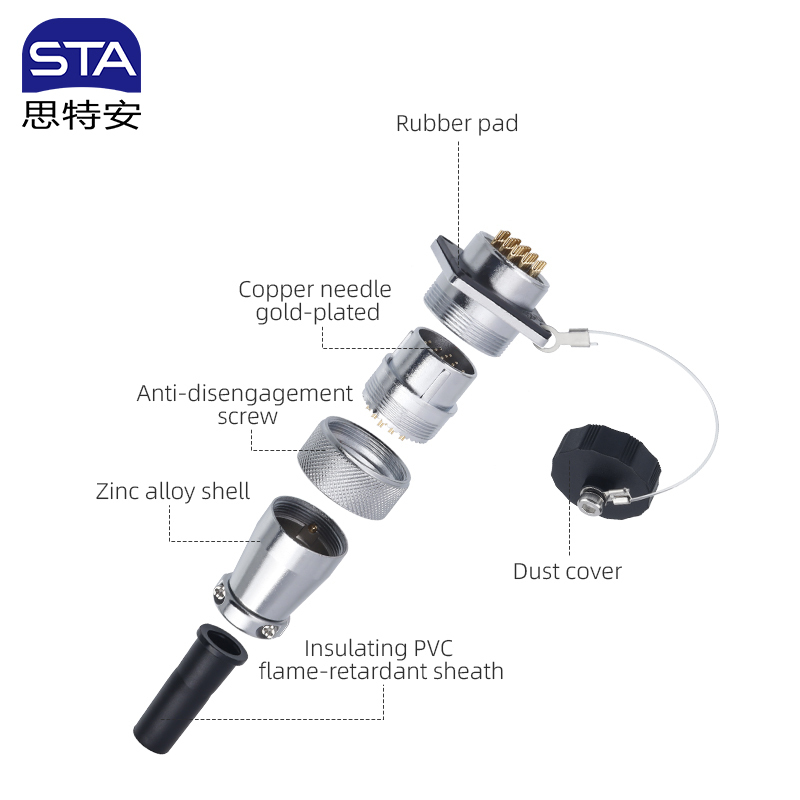

The WS20 aviation plug adopts a precision-machined zinc alloy shell with nickel plating, providing superior mechanical strength and resistance to vibration, impact, and corrosion. This ensures a long service life and stable electrical performance, making it suitable for industrial and outdoor applications.
2. Gold-Plated Copper Contacts for Reliable Signal Transmission
The connector uses high-quality brass or phosphor bronze contacts with gold plating, reducing contact resistance and oxidation. This guarantees efficient power transfer and consistent signal quality in automation systems, control panels, and instrumentation.
3. PVC Sleeve Cable Protection and Strain Relief
The built-in PVC sleeve and cable gland design provide enhanced sealing and strain relief, protecting cables from bending or pulling damage. This feature improves cable lifespan and maintains waterproof integrity in dynamic or mobile applications.
4. IP67 Waterproof & Dustproof Performance
Rated IP67, the WS20 connector offers excellent environmental sealing against dust, moisture, and oil. It maintains reliable operation in outdoor or industrial environments such as machinery, vehicles, and energy systems requiring robust waterproof performance.
5. Multi-Pin Options & Easy Assembly
Available in 2 3 4 5 6 7 8 9 12 Pins configurations, the WS20 series supports flexible connection schemes for both power and data. Its threaded locking system allows quick, vibration-proof installation and secure mating in automation, robotics, and field instrumentation.
Product Uses
Industrial Automation Systems
Used for reliable power and signal transmission in PLCs, control cabinets, and robotic automation lines requiring stable, waterproof electrical connections.
Outdoor Lighting & LED Equipment
Ideal for LED lighting systems, displays, and stage equipment, providing dustproof and waterproof performance for long-term outdoor operation.
Machinery and Equipment Power Supply
Connects sensors, servo motors, and industrial equipment, offering high current capacity and vibration resistance in dynamic environments.
Energy and Environmental Monitoring
Supports stable signal transmission in renewable energy, solar, and environmental monitoring systems with high sealing performance.
