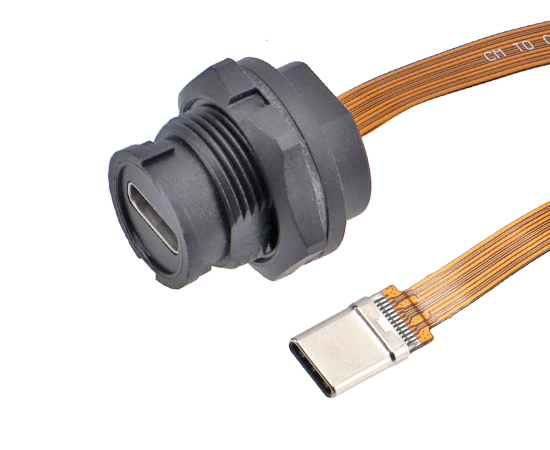

The TYPE-C Waterproof FPC Cable Connector is designed for compact electronic systems requiring high-speed USB 3.1 transmission and reliable environmental sealing. Featuring a back-mount receptacle with flexible FPC flat cable, it supports threaded or bayonet coupling for secure installation in industrial and outdoor applications.
USB Type-C 3.1 High-Speed Performance
Supports USB 3.1 data transmission through FPC flat cable, ensuring stable signal integrity in space-constrained waterproof Type-C connector applications.

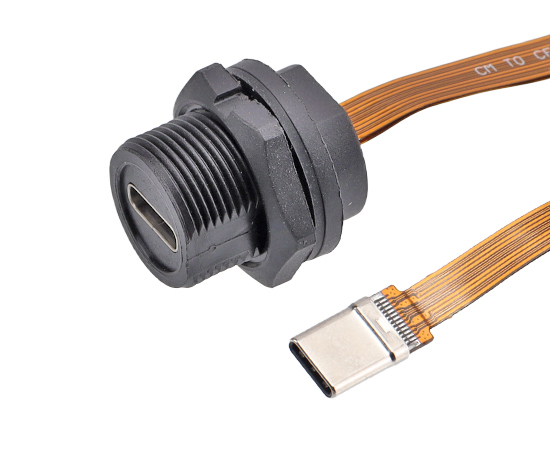

Dual Locking Options for Flexible Design
Available with threaded or bayonet coupling, allowing engineers to choose the optimal locking method for vibration resistance and fast installation.

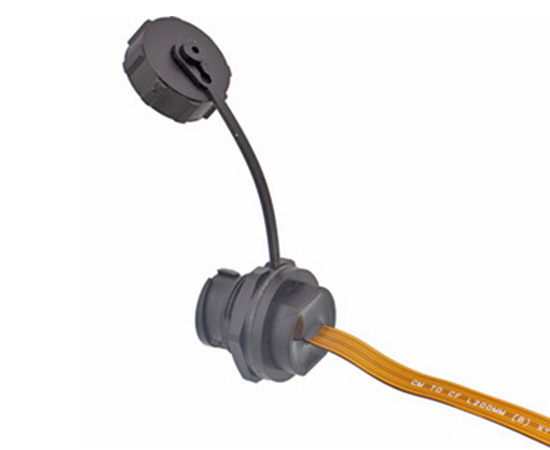

Compact Back-Mount Structure with FPC Cable
The back mount receptacle combined with an FPC flat cable enables slim device layouts and efficient internal routing in sealed enclosures.
IP67/IP68 Waterproof Protection
Sealed housing protects contacts against water, dust, and moisture, making the connector suitable for harsh industrial environments.
Customizable Shielding for EMI Control
Optional shielding design improves electromagnetic compatibility, ideal for industrial USB-C connections and sensitive signal transmission.

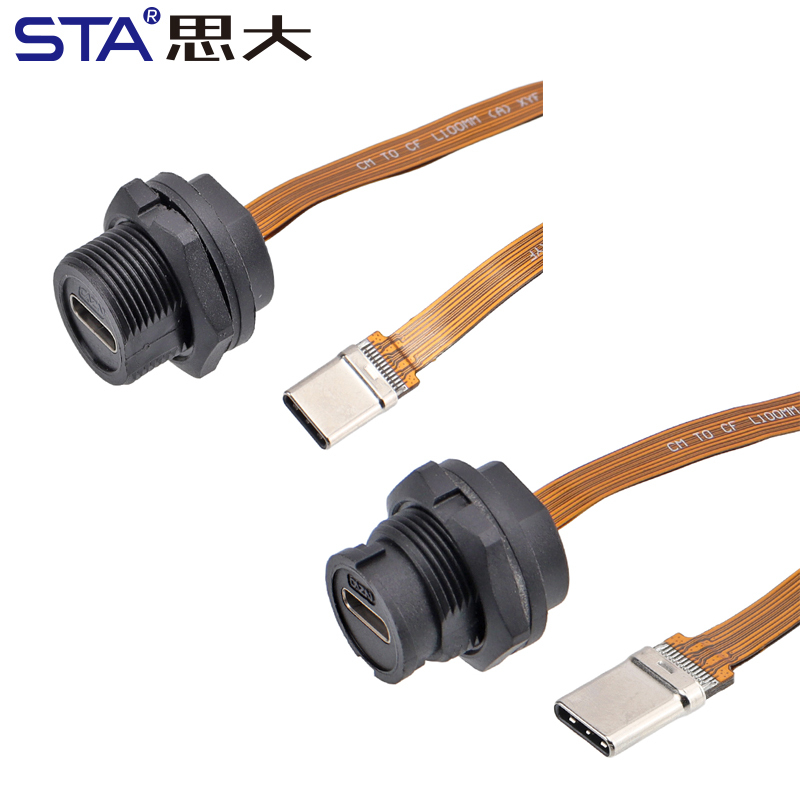

| TYPE-C Female/Male FPC Flat cable 3.1 speed(Threaded) | TYPE-C Female/Male FPC Flat Cable 3.1 Speed(Bayonet) |
 |
 |
| Connector Type | TYPE-C Female Plastic Waterproof Socket |
| Shell material | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material | Brass |
| Cable material | PVC |
| Waterproof grade | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance | 2000 mΩ |
| Applicable temperature | -40℃ ~ +105℃ |
| Durability | ≥500(Cycles) |
Industrial control panels with USB-C interfaces
Waterproof embedded USB Type-C systems
Compact electronic devices using FPC cable routing
Outdoor communication and data equipment
OEM sealed enclosures requiring USB-C 3.1 connectivity
Q1: Does this connector support USB 3.1 high-speed data?
A: Yes, it is designed specifically for USB Type-C 3.1 transmission.
Q2: What is the difference between threaded and bayonet versions?
A: Threaded provides stronger locking, while bayonet allows quicker connection and disconnection.
Q3: Is shielding mandatory?
A: Shielding is optional and can be customized based on EMI requirements.
Q4: Can this connector be used outdoors?
A: Yes, the IP67/IP68 rating ensures reliable outdoor operation.
