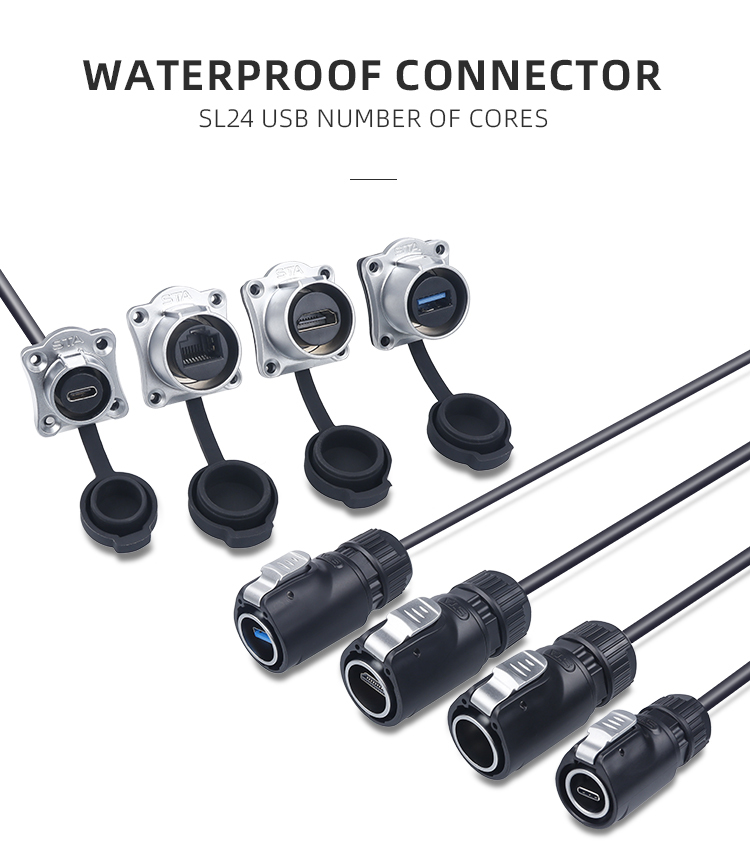

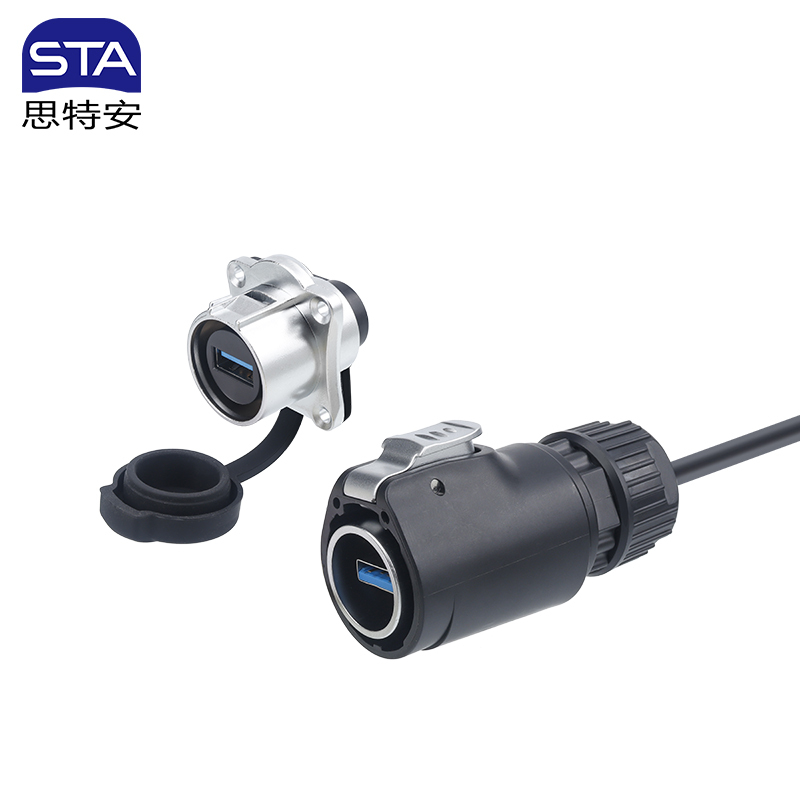

SL24 USB Aviation plug IP68 Waterproof Connector

Key Advantages

• High-Speed Data Capability: Available in both USB 2.0 and USB 3.0 core types, ensuring rapid data transfer rates essential for modern peripherals, industrial PCs, and IIoT devices without compromising signal integrity.

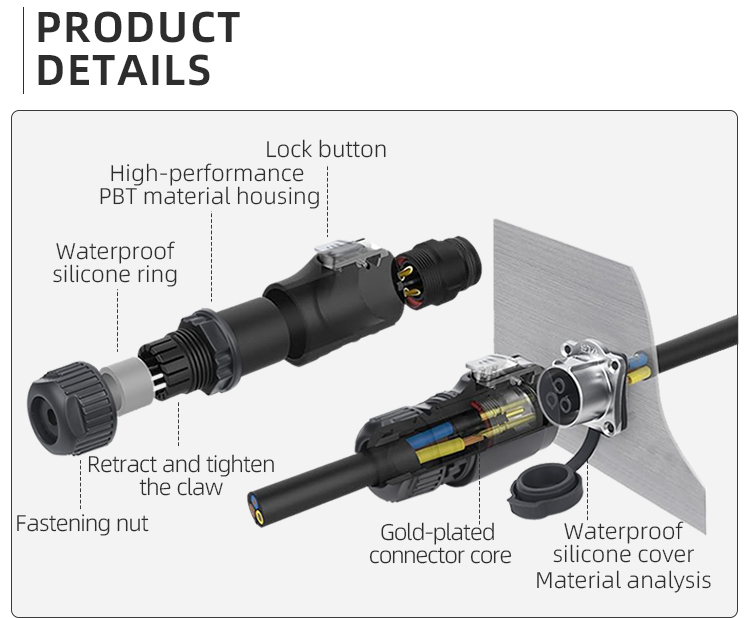

• Superior IP68 Environmental Sealing: Engineered with robust silicone and rubber gaskets, the SL24 series offers complete protection against dust ingress and prolonged water immersion, ensuring operation in the harshest industrial environments.
• Reliable Press-Lock Mechanism: Features an intuitive press-lock mating system for quick, secure connections that resist vibration and accidental disengagement, perfect for dynamic machinery and mobile applications.

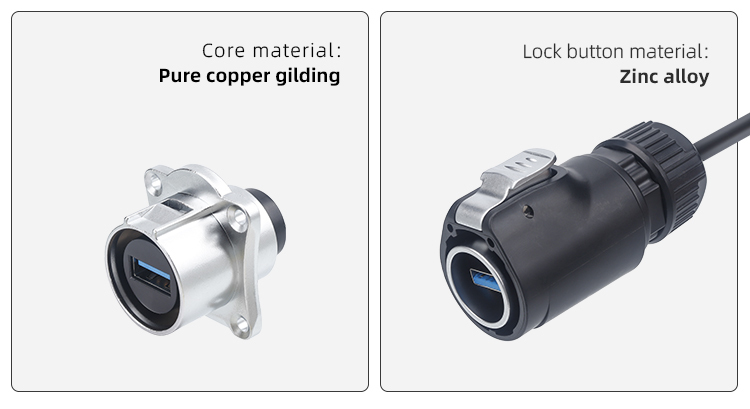

• Durable Industrial-Grade Materials: Constructed with a flame-retardant PBT plastic shell (UL94-V0 rated) and chrome-plated zinc alloy components, offering excellent chemical resistance, heat stability, and a mechanical life of ≥500 cycles.
• Certified for Global Compliance: All SL24 USB connectors comply with TUV, CE, and RoHS safety standards, ensuring they meet international safety and environmental benchmarks for electrical components.

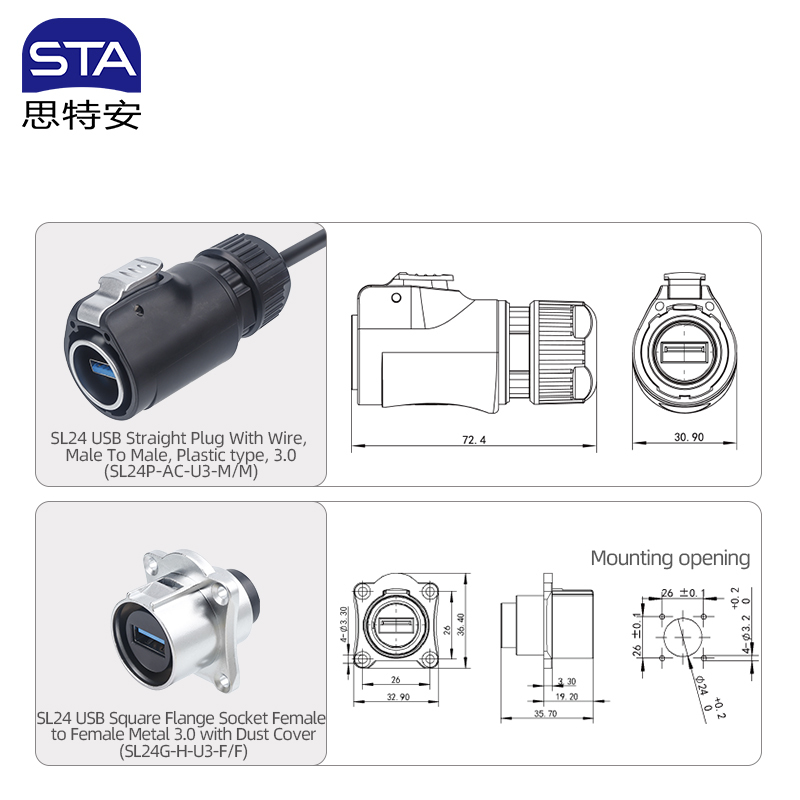

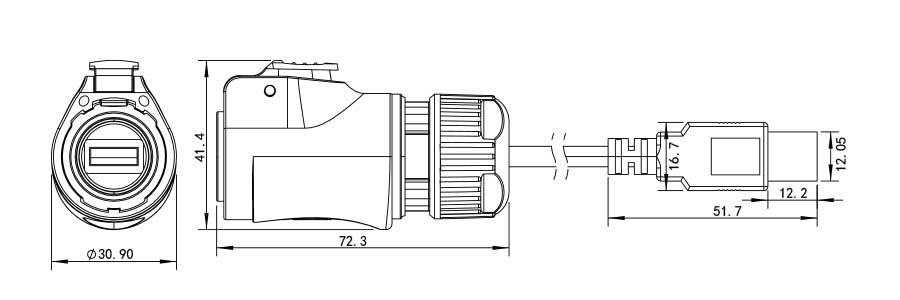

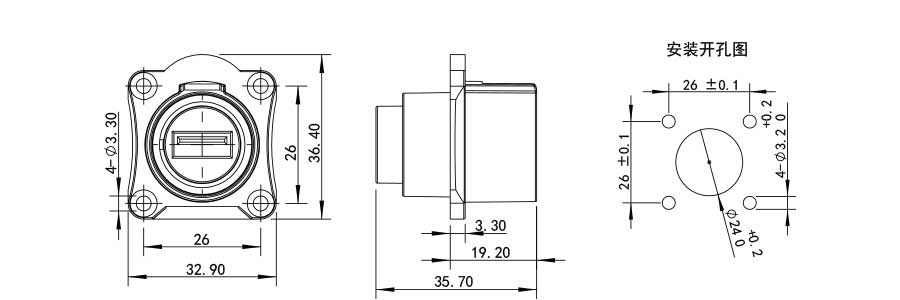

SL24 RJ45 Straight Plug Male To Male Plastic Type CAT6a	SL24 RJ45 Square Flange Socket Female To Female Metal Type CAT6a With Dust Cover

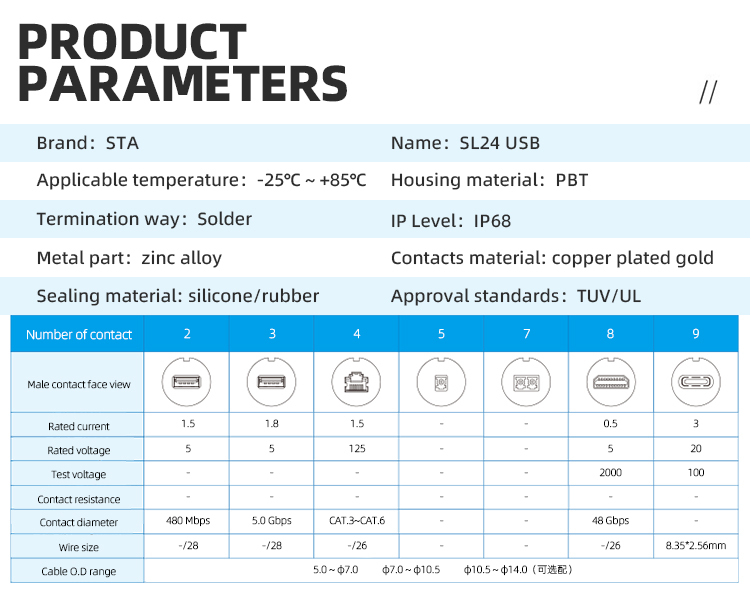

Data Type	USB2.0	USB3.0	RJ45	HDMI	TYPE-C
Front view of insulator
Rated current	0.5A	0.9A	1.5A	0.5A	5A
Rated voltage	5(AC.V)	5(AC.V)	125(AC.V)	5(AC.V)	20(AC.V)
Standard Model	2.0	3.0	CAT6	2.1	USB3.1
Conductor specifications	-/28(mm²/AWG)	-/28(mm²/AWG)	-/26(mm²/AWG)	-/26(mm²/AWG)	8.35*2.56mm
Insulation resistance	≥5000MΩ
Withstand voltage	1(KV)	1(KV)	1(KV)	1(KV)	0.3(KV)
Protection class	Standard IP65 / Optional IP67 & IP68
Mechanical life	≥500 Cycles
Wiring method	Welding, screwing
Operating temperature	-25℃ ~ +85℃
Housing/insulation parts	PBT alloy
Metal parts	Zinc alloy with chrome plating
Contact pins	Copper alloy with gold plating
Waterproof material	silicone/rubber
Flame retardant rating	UL94-V0

Product Uses

1. Industrial PCs & HMIs: Provides rugged USB 3.0 interfaces for connection to industrial panel PCs, Human-Machine Interfaces, and data acquisition systems.
2. Outdoor Monitoring Equipment: Ensures IP68 waterproof USB connections for external hard drives, cameras, and data loggers installed in exposed environments.
3. Marine Electronics: Offers marine-grade sealed USB ports for shipboard navigation systems and communication units resistant to moisture and vibration.
4. Medical Diagnostic Gear: Utilizes durable medical-grade USB connectors for portable diagnostic equipment requiring robust, reliable, and easily cleanable interfaces.
5. Automation & Robotics: Provides heavy-duty waterproof USB plugs for sensor connectivity and system updates in automated machinery and robotic work cells.
