SL24 RJ45 Waterproof Connector IP68 | CAT6a Ethernet aviation plug

Key Advantages

• High-Speed CAT6a Performance: Engineered to meet rigorous CAT6a standards, ensuring reliable 10 Gigabit Ethernet data transfer rates essential for modern, high-bandwidth industrial IoT applications.
• Superior IP68 Environmental Sealing: Utilizing robust silicone and rubber gaskets, the LP24 series offers complete protection against dust ingress and prolonged water immersion, ensuring operation in the harshest environments.

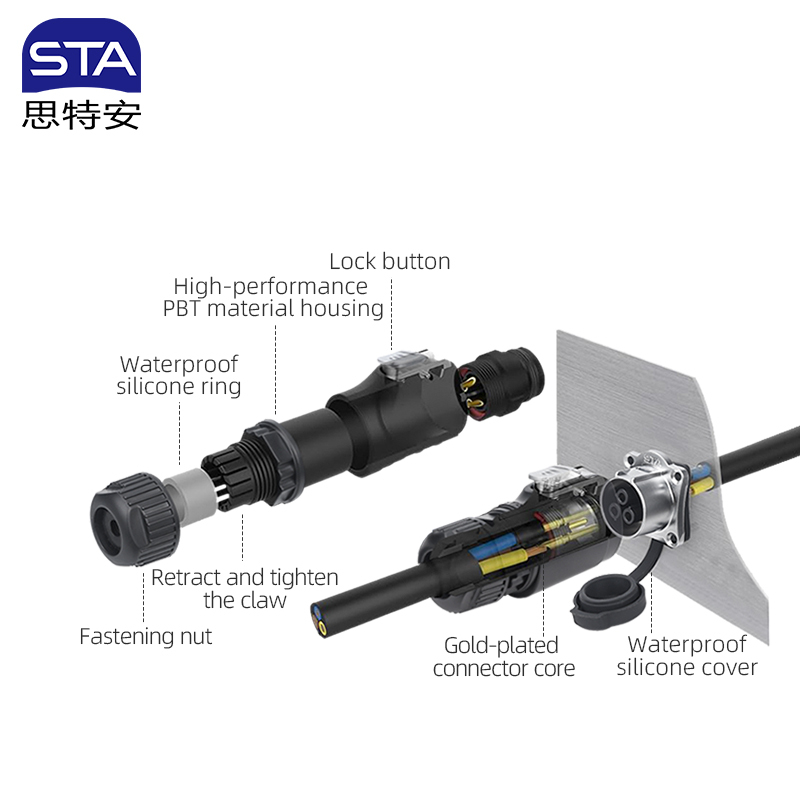

• Secure & Rapid Snap-Lock Mechanism: Features an intuitive snap-fastening mating system for quick, secure connections that resist vibration and accidental disengagement, perfect for dynamic industrial settings.
• Durable Industrial-Grade Materials: Constructed with a flame-retardant PBT plastic shell and chrome-plated zinc alloy components, offering excellent chemical resistance, heat stability, and mechanical longevity (≥500 cycles).
• Certified for Global Compliance: All LP24 connectors comply with TUV, UL, and CE safety standards, making them a safe and reliable choice for international projects and global market access.

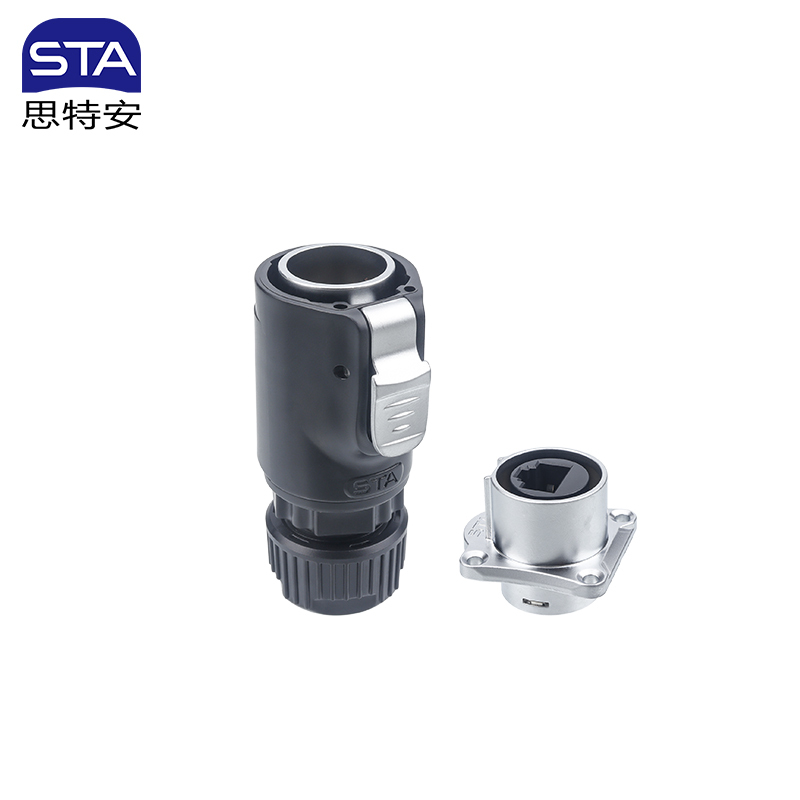

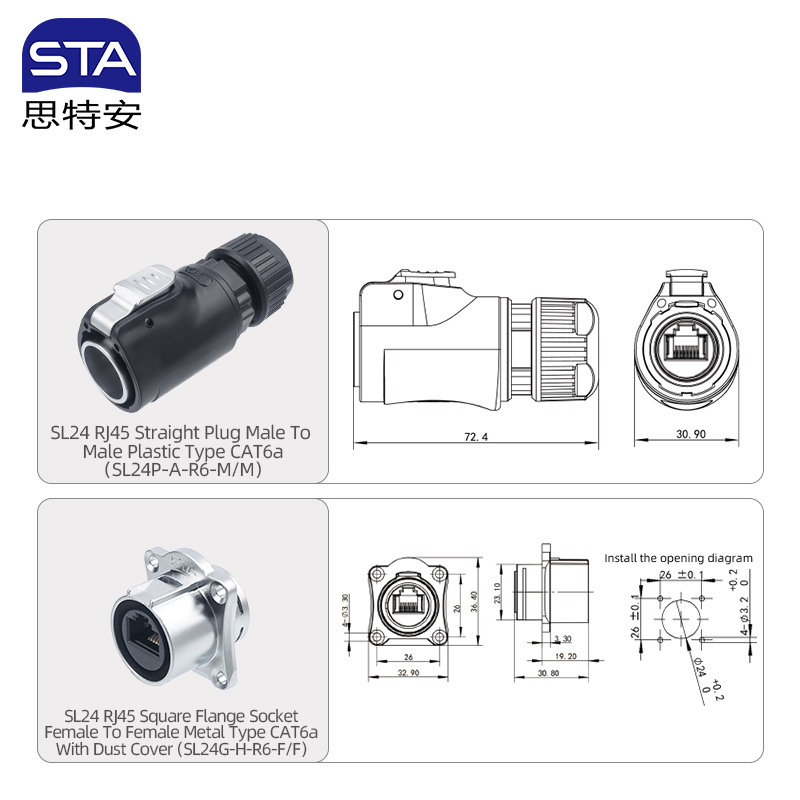

SL24 RJ45 Straight Plug Male To Male Plastic Type CAT6a	SL24 RJ45 Square Flange Socket Female To Female Metal Type CAT6a With Dust Cover

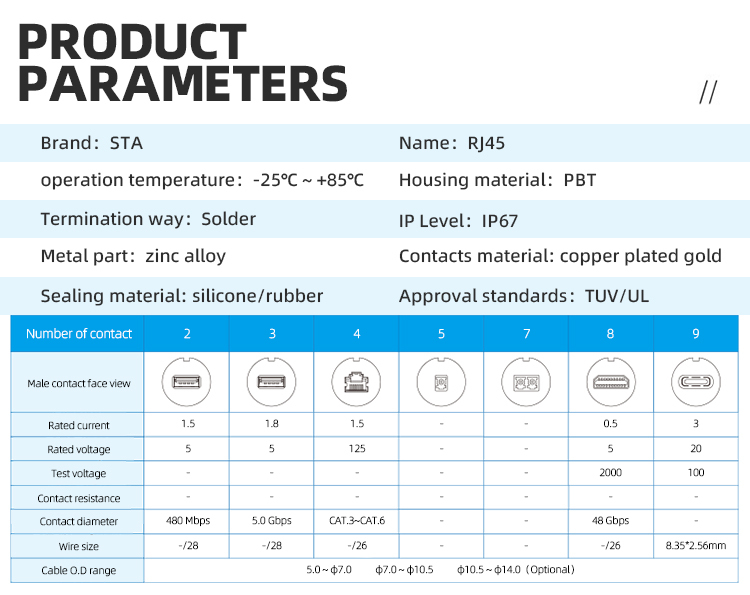

Data Type	USB2.0	USB3.0	RJ45	HDMI	TYPE-C
Front view of insulator
Rated current	0.5A	0.9A	1.5A	0.5A	5A
Rated voltage	5(AC.V)	5(AC.V)	125(AC.V)	5(AC.V)	20(AC.V)
Standard Model	2.0	3.0	CAT6	2.1	USB3.1
Conductor specifications	-/28(mm²/AWG)	-/28(mm²/AWG)	-/26(mm²/AWG)	-/26(mm²/AWG)	8.35*2.56mm
Insulation resistance	≥5000MΩ
Withstand voltage	1(KV)	1(KV)	1(KV)	1(KV)	0.3(KV)
Protection class	Standard IP65 / Optional IP67 & IP68
Mechanical life	≥500 Cycles
Wiring method	Welding, screwing
Operating temperature	-25℃ ~ +85℃
Housing/insulation parts	PBT alloy
Metal parts	Zinc alloy with chrome plating
Contact pins	Copper alloy with gold plating
Waterproof material	silicone/rubber
Flame retardant rating	UL94-V0

Product Uses

1. Industrial Ethernet Networks: Providing ruggedized CAT6a connectors for automated machinery, robotics, and SCADA systems in harsh factory environments.
2. Outdoor IP Cameras & WiFi Access Points: Ensuring weatherproof RJ45 connections for surveillance systems and public outdoor network infrastructure.
3. Marine and Coastal Communications: Offering marine-grade sealed Ethernet ports for shipboard navigation and data acquisition systems resistant to salt spray and moisture.
4. Smart City Infrastructure: Reliable IP-rated data connectors for smart lighting poles, environmental monitoring stations, and traffic control systems.
5. Field Communications & Military: Heavy-duty quick-connect RJ45 plugs for rapid deployment in portable field communication centers.

FAQ

• Q1: What is the primary difference between the SL24 and SL20 RJ45 series?
  The main difference lies in the panel cut-out size and mechanical interface. The LP24 is a larger, more robust connection point typically designed for high-current or heavy-duty industrial panels.
• Q2: Does the metal square flange socket include a dust cover?

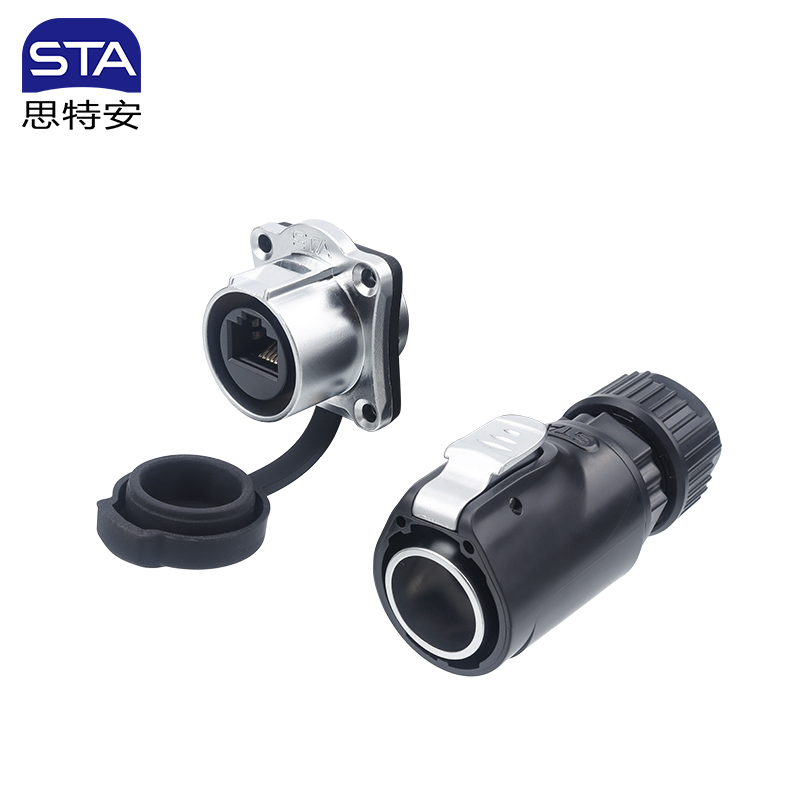

  Yes, the metal female socket variant is supplied complete with a protective dust cover to maintain the IP rating when the plug is disconnected.
• Q3: Can these connectors be used for Power over Ethernet (PoE) applications?
  Yes, these connectors are fully compatible with standard PoE protocols, allowing both power and data to be transmitted reliably over the same connection.
• Q4: Is it easy to install a standard RJ45 cable into the feed-through coupler?
  Absolutely. The feed-through design means installation is incredibly simple: just plug a standard, pre-terminated RJ45 patch cable into both ends of the connector interface.
