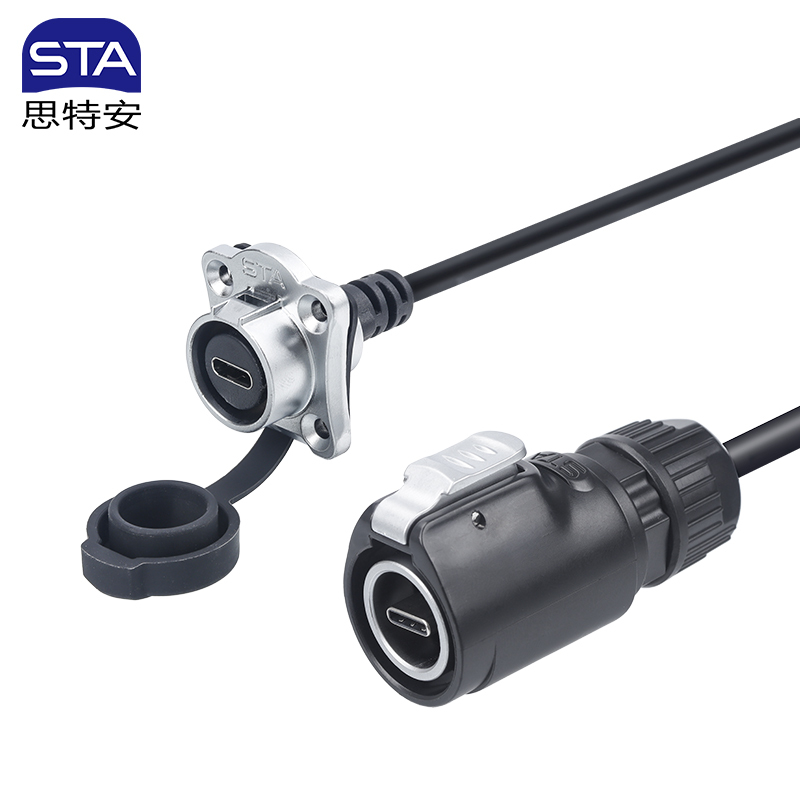

SL16 USB Type-C Waterproof Connector IP68 | USB 3.1 Speed

Name: SL16 USB Type-C Waterproof Connector IP68 | USB 3.1 Speed
Brand: STA Connector
SKU: SL16 Type-C
Availability: InStock
Rating: 5 (1 reviews)

No.SL16 Type-C

SL16 Type-C waterproof connector supporting high-speed USB 3.1 data transmission (10Gbps). These IP68-rated plastic plugs and metal sockets feature a reliable press-lock mechanism, PBT housing, and TUV/CE/RoHS certification. Ideal for industrial automation, marine equipment, and outdoor networking applications. Explore our USB-C solutions today.

Model Designation

SL16 USB-C Data Type Aviation Plug Connector

Compatible Standards

USB 2.0, USB 3.0, USB 3.1 (Gen 2)

Type Options

Plug (Male-Male/With Wire), Socket (Female-Female/With Wire)

Locking Interface

Press-lock

Housing Material

PBT (Fire Resistance: V-0), Zinc Alloy

Contact Material

Brass with Gold Plating

IP Rating

Standard IP65 (Optional IP67 & IP68 (Waterproof & Dustproof)

Temperature Range

-25°C ~ +85°C

Connector Type:

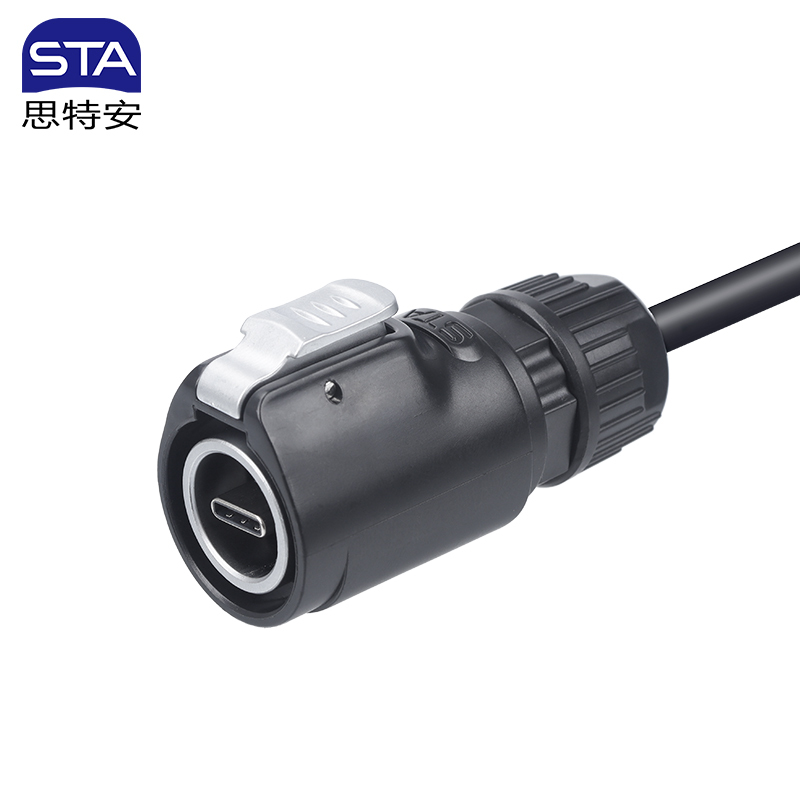

SL16 Type C Straight Plug With Wire, Male To Male, Plastic Type 3..1

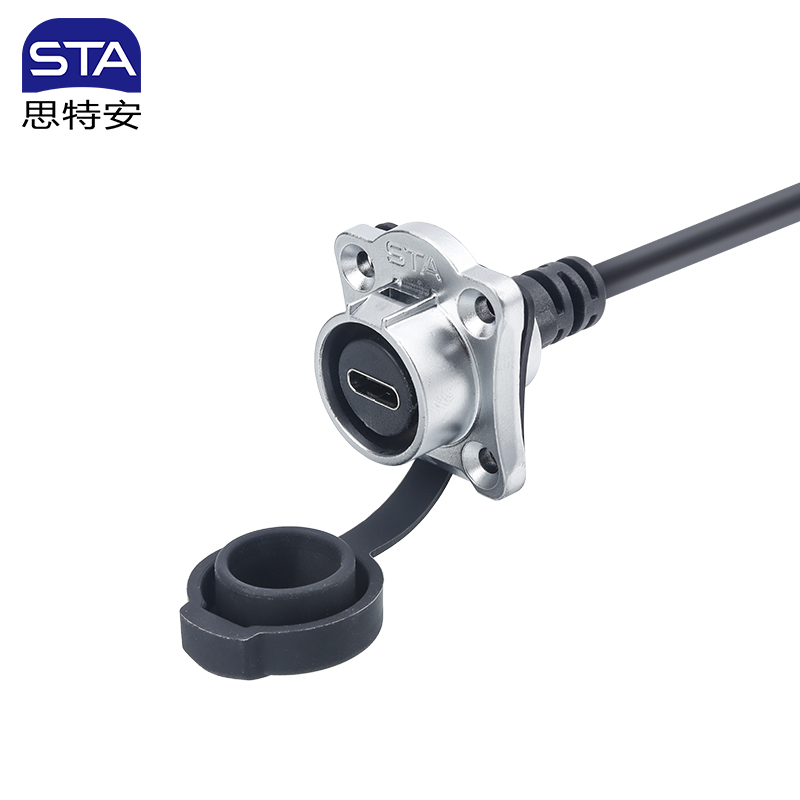

SL16 Type C Square Flange Socket With Wire Female To Male Metal Type 3.1

$SL16 Type-C 3.0 male\USB 3.0 male straight-wire plug$

SL16 Type-C 3.0 male\USB 3.0 male straight-wire plug

Cable Length:

Customized

GET A QUOTE

Description

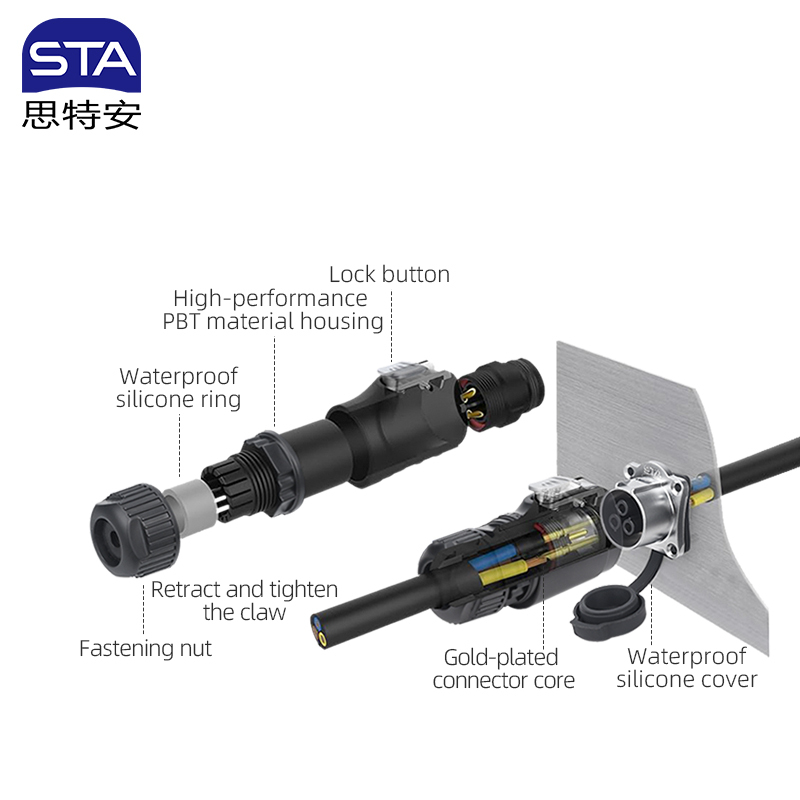

Key Advantages

Next-Generation USB 3.1 Speed: Engineered for high-bandwidth applications, supporting data transfer rates up to 10Gbps, making it ideal for modern industrial IoT and high-speed data acquisition systems.
Universal & Reversible Type-C Interface: Features the industry-standard reversible Type-C connector, ensuring universal compatibility and simplifying field connections by eliminating incorrect plug insertion.
Superior IP68 Environmental Sealing: Robust silicone and rubber gaskets provide complete protection against dust ingress and prolonged water immersion, crucial for reliable performance in harsh industrial and outdoor environments.
Rapid Press-Lock Engagement: The intuitive press-lock mating system ensures a quick, secure connection that resists vibration and accidental uncoupling, perfect for dynamic machinery and portable test equipment.
Durable & Certified Construction: Built with flame-retardant PBT plastic (UL94-V0) and chrome-plated zinc alloy, the series is certified TUV, CE, and RoHS compliant for safety and longevity (≥500 cycles).

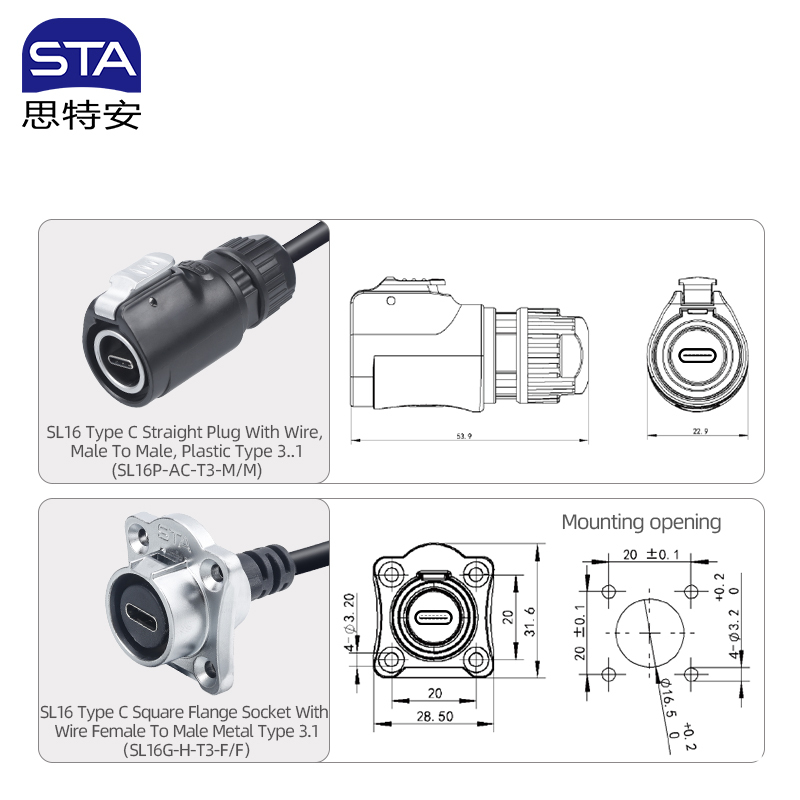

SL16 Type C Straight Plug With Wire, Male To Male, Plastic Type 3..1	SL16 Type C Square Flange Socket With Wire Female To Male Metal Type 3.1

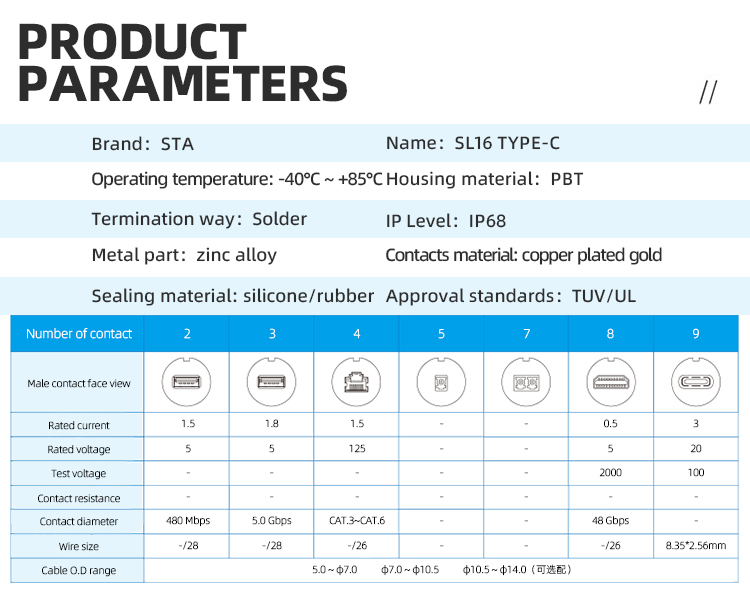

Data Type	USB2.0	USB3.0	RJ45	HDMI	TYPE-C
Front view of insulator
Rated current	0.5A	0.9A	1.5A	0.5A	5A
Rated voltage	5(AC.V)	5(AC.V)	125(AC.V)	5(AC.V)	20(AC.V)
Standard Model	2.0	3.0	CAT6	2.1	USB3.1
Conductor specifications	-/28(mm²/AWG)	-/28(mm²/AWG)	-/26(mm²/AWG)	-/26(mm²/AWG)	8.35*2.56mm
Insulation resistance	≥5000MΩ
Withstand voltage	1(KV)	1(KV)	1(KV)	1(KV)	0.3(KV)
Protection class	Standard IP65 / Optional IP67 & IP68
Mechanical life	≥500 Cycles
Wiring method	Welding, screwing
Operating temperature	-25℃ ~ +85℃
Housing/insulation parts	PBT alloy
Metal parts	Zinc alloy with chrome plating
Contact pins	Copper alloy with gold plating
Waterproof material	silicone/rubber
Flame retardant rating	UL94-V0

SL16 / LP16 Type-C Data Type Waterproof Connector

Product Uses

Industrial Automation: Provides rugged USB-C ports for connecting high-speed data acquisition modules and industrial cameras in factory settings.
Outdoor Networking Hubs: Ensures IP68 waterproof Type-C connections for smart city infrastructure, outdoor access points, and remote monitoring stations.
Marine Systems: Offers marine-grade sealed USB-C ports for shipboard navigation and data logging systems, resistant to salt spray and vibration.
Portable Field Diagnostics: Utilizes durable field-deployable USB 3.1 Type-C connectors for rugged laptops and diagnostic tools in challenging environments.
Test & Measurement Gear: Provides reliable industrial USB Type-C interfaces for professional testing equipment in harsh environments.

FAQ

Q1: Does this connector support full USB 3.1 (10Gbps) data rates?
Yes, the SL16 Type-C series is specifically engineered to handle the full bandwidth requirements of USB 3.1 Gen 2 (10Gbps) standards when paired with appropriate cabling.
Q2: Is the metal flange socket supplied with a dust cover?
Yes, all SL16 Type-C square flange sockets are supplied complete with a protective dust cover to maintain the IP rating when the port is not in use.
Q3: Can I connect a standard USB-C cable to these connectors?
Yes, the female-to-female coupler design allows standard, pre-terminated USB-C cables to plug in securely from both the front and the back.
Q4: Is the press-lock mechanism secure enough for high-vibration applications?
Yes, the press-lock provides a robust, positive engagement that is designed specifically to resist vibration and accidental disconnection in industrial settings.
