SD20 Connector: IP65 Waterproof Metal Aviation Plug & Socket

Name: SD20 Connector: IP65 Waterproof Metal Aviation Plug & Socket
Brand: STA Connector
SKU: SD20
Availability: InStock
Rating: 5 (1 reviews)

No.SD20

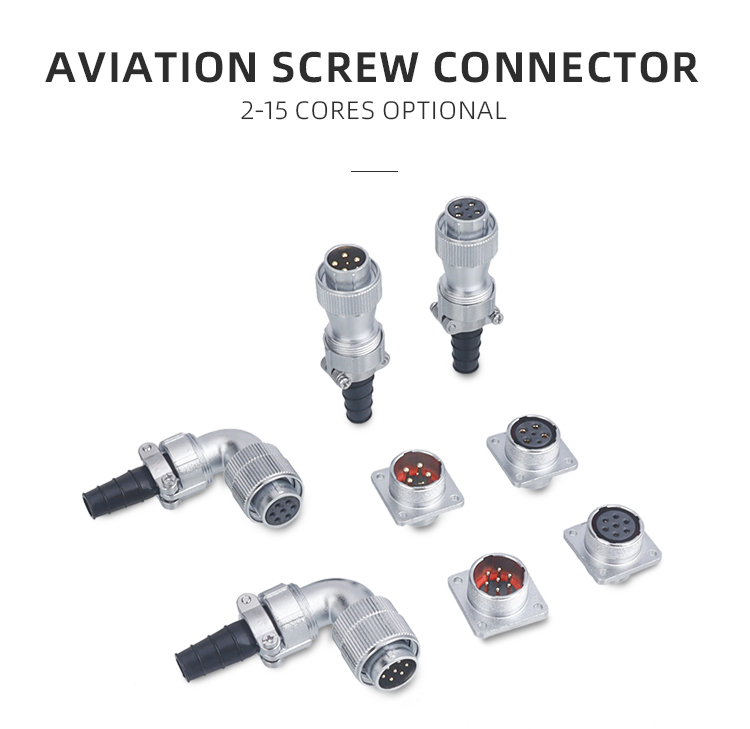

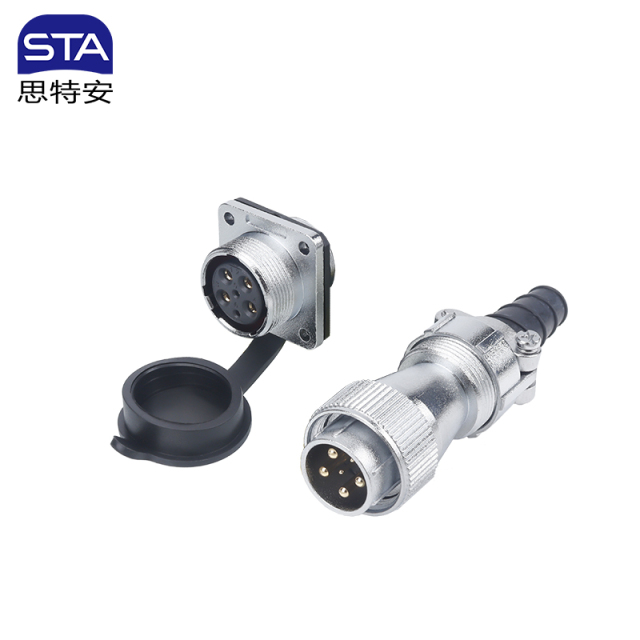

The SD20 Connector from STA Connector is a high-performance metal industrial waterproof aviation plug designed for demanding electrical environments. Featuring a rugged zinc alloy shell with chrome plating, this series offers exceptional mechanical strength and EMI shielding. Available in multiple configurations including male/female plugs and square flange receptacles, the SD20 ensures a secure threaded coupling connection. Whether for heavy machinery or outdoor power systems, these connectors provide a reliable IP65-rated interface for seamless power and signal transmission.

Product

SD20 Industrial Power Connector

Number of Pins

2,3,4,5,6,7,8,9,12,15pin

Screw Crimp

φ2.5mm, φ3mm, φ3.5mm

Temperature Range

-40°C ~ +85°C

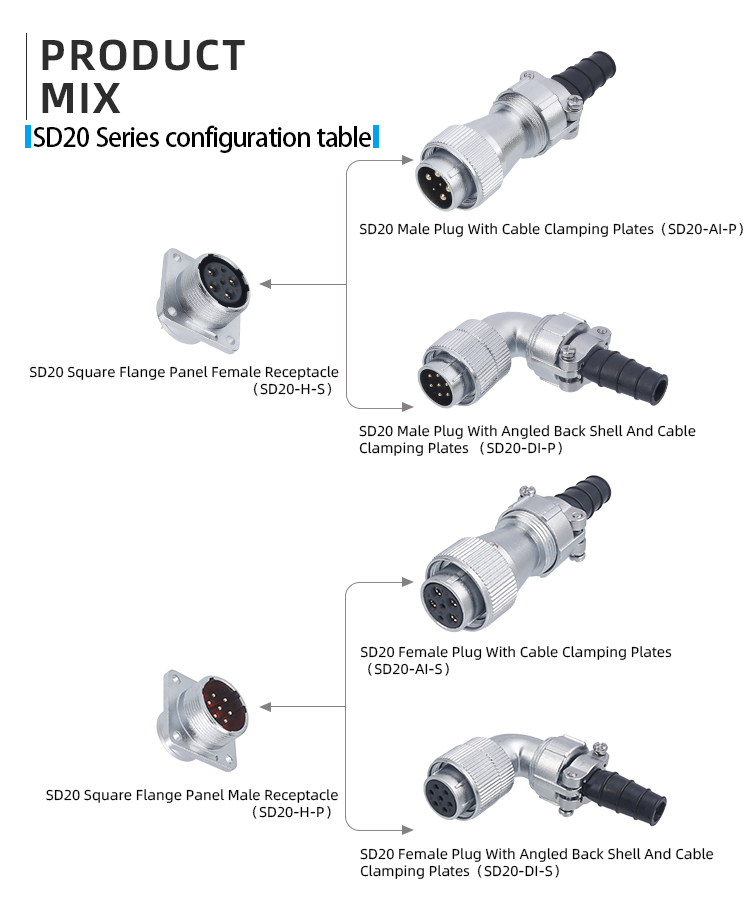

Connector Type:

Male Plug With Cable Clamping Plates

Female Plug With Cable Clamping Plates

Male Plug With Angled Back Shell And Cable Clamping Plates

Female Plug With Angled Back Shell And Cable Clamping Plates

Square Flange Panel Male Receptacle

Square Flange Panel Female Receptacle

Pins:

2pin

3pin

4pin

5pin

6pin

7pin

8pin

9pin

10pin

12pin

14pin

15pin

GET A QUOTE

Description

Key Advantages

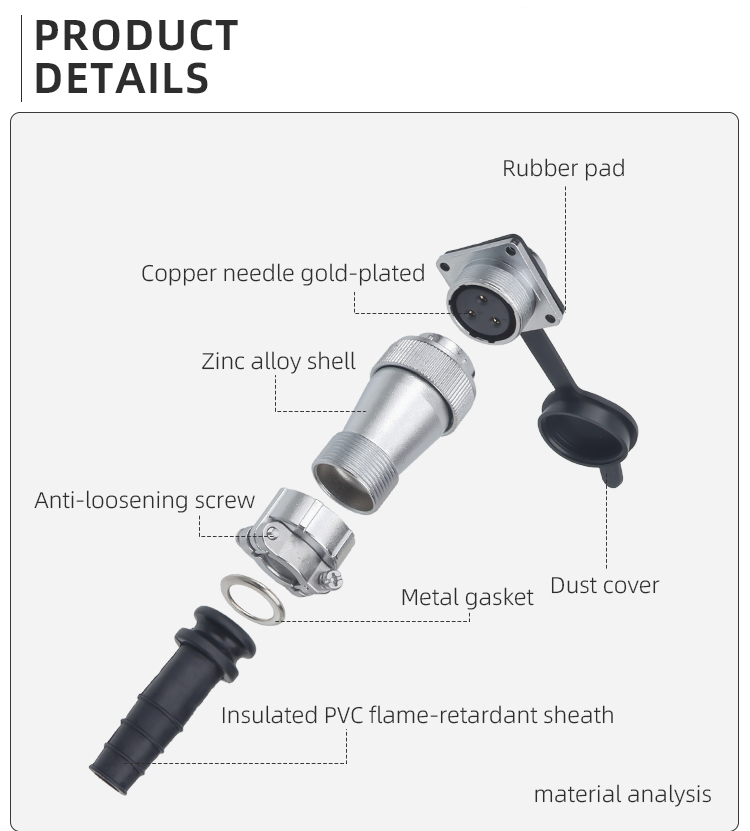

Rugged Metal Construction: Engineered with a premium zinc alloy chrome-plated shell, the SD20 series provides superior impact resistance and durability, outperforming plastic alternatives in harsh industrial or high-traffic operational environments.
High-Temperature Insulation: Utilizing PPS thermoplastic insulation, these connectors can withstand extreme temperatures up to 260℃, ensuring electrical stability and preventing housing deformation during high-intensity soldering or long-term operation.
Superior Conductivity: Equipped with gold-plated brass contacts, the SD20 maintains low contact resistance and prevents oxidation, guaranteeing reliable signal integrity and efficient power flow over 500+ mating cycles.
Versatile Mounting & Wiring: We offer flexible installation options including square flange panel mounting and angled back shells, supporting soldering, crimping, and screw termination to fit diverse engineering requirements.
Certified Environmental Safety: Our SD20 series is fully compliant with CE, RoHS, and UL standards, providing an IP65 waterproof rating that protects critical electrical connections against dust, moisture, and low-pressure water jets.

Connector drawings

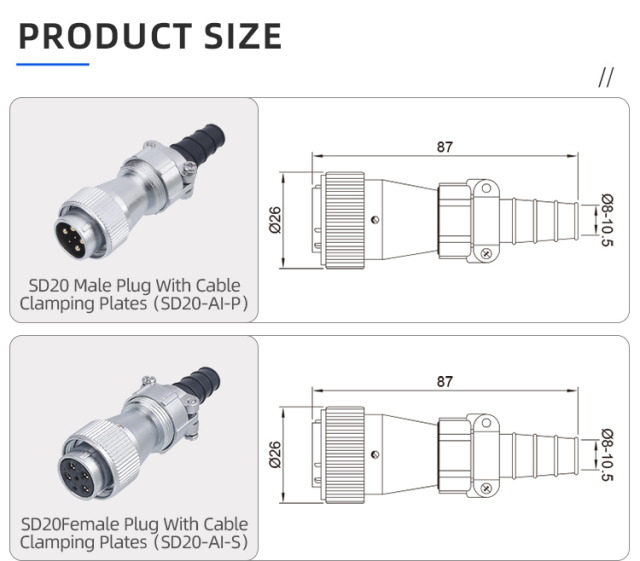

Male Plug With Cable Clamping Plates	Female Plug With Cable Clamping Plates

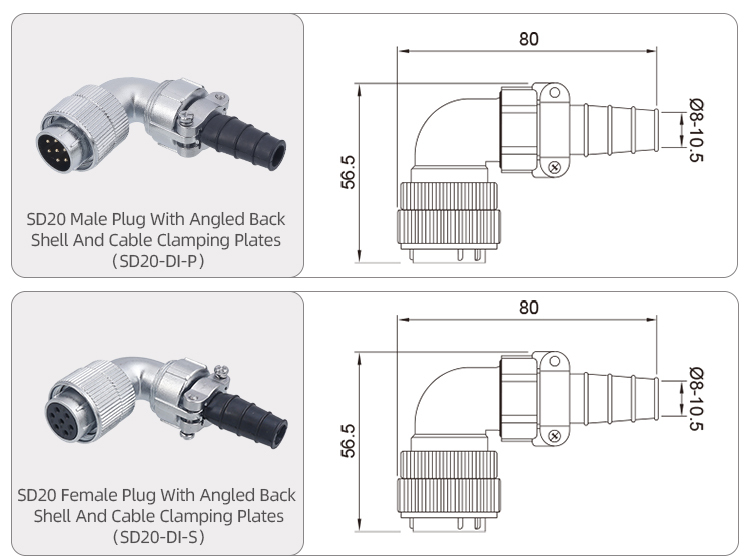

Male Plug With Angled Back Shell And Cable Clamping Plates	Female Plug With Angled Back Shell And Cable Clamping Plates

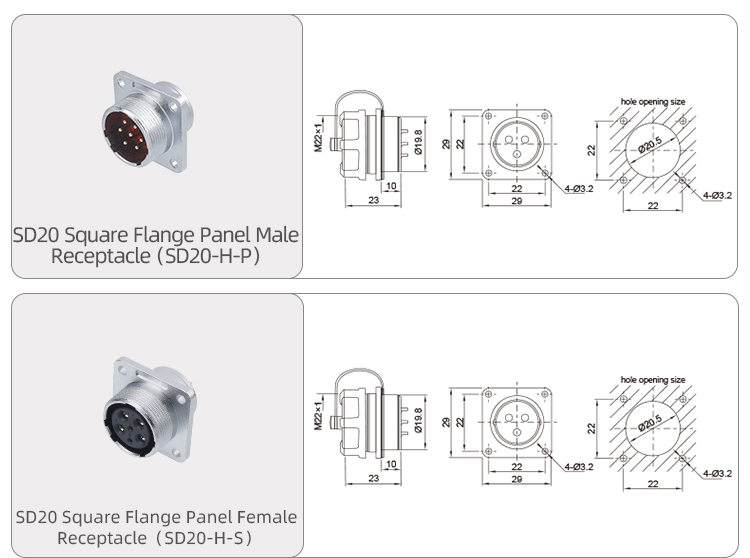

Square Flange Panel Male Receptacle	Square Flange Panel Female Receptacle

Pins	2	3	4	5	6	6B	7	8	9	12	15
Front view
Rated Current	25	25	25	10	5×2 25×4	30×2 5×4	10	10	5	5	5
Contact Diameter	φ2.5×2	φ2.5×3	φ2.5×4	φ1×5	φ1×2 φ2.5×4	φ3×2 φ1×4	φ1.5×7	φ1.5×8	φ1×9	φ1×12	φ1×15
Operating Voltage (AC.V)	500	500	500	500	500	500	500	500	400	400	400
Withstand Voltage (AC.V) 1 min	1500	1500	1500	1500	1500	1500	1500	1500	1200	1200	1200
Contact resistance	1MΩ	1MΩ	1MΩ	2.5MΩ	5×2MΩ 1×4MΩ	1×2MΩ 5×4MΩ	2.5MΩ	2.5MΩ	5MΩ	5MΩ	5MΩ
Insulation resistance	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ	2000MΩ
Wire Gauge (mm²/AWG)	≤4/11	≤4/11	≤4/11	≤2/14	≤0.75/18 ≤4/11	≤0.75/18 ≤4/11	≤2/14	≤2/14	≤0.75/18	≤0.75/18	≤0.75/18

Pins	2	3	4	5	6	7	9	10
Front view
Rated Current	10A	10A	5A	5A	5A	5A	5A	5A
Contact Diameter	φ1.5×2mm	φ1.5×3mm	φ1×4mm	φ1×5mm	φ1×5mm	φ1×7mm	φ1×9mm	φ1×10mm
Operating Voltage (AC.V)	500	500	500	500	500	400	400	400
Withstand Voltage (AC.V) 1 min	1500	1500	1500	1500	1500	1200	1200	1200
Contact Resistance	2.5mΩ	2.5mΩ	5mΩ	5mΩ	5mΩ	5mΩ	5mΩ	5mΩ
Wire Gauge (mm²/AWG)	≤2/14	≤2/14	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18

Versatile Application Scenarios

Heavy Machinery: Provides rugged IP65 power connectors for industrial machinery, motor control, and automation systems requiring specific current supply (10A or 5A).
Renewable Energy: Ideal for solar power connectors and wind turbine auxiliary power feeds due to specific current ratings and temperature resistance capabilities.
Industrial Automation: Ensures reliable threaded power plugs for PLCs, drives, and robotic systems in demanding factory environments.
Outdoor Lighting Systems: Used in weatherproof high-current lighting connectors for stadium lights, port lighting, and large digital displays.
Test & Measurement Gear: Provides durable industrial power interfaces for professional testing equipment in workshops and labs.

FAQ

Q1: What is the benefit of the threaded coupling mechanism?
The threaded mechanism provides a highly secure, vibration-resistant, and robust connection compared to snap-lock types, ideal for high-power applications where safety and stability are paramount.
Q2: What are the specific current ratings for this series?
According to Elecbee, the 2-pin and 3-pin configurations are rated for 10A, while the 4-pin through 10-pin configurations are rated for 5A.
Q3: Is the IP65 rating sufficient for outdoor use?
IP65 protects against dust and water splashes/jets. It is suitable for most industrial outdoor applications where continuous submersion is not a factor.
Q4: What temperature can the internal insulator handle?
The PPS thermoplastic insulator can handle temperatures up to 260℃, according to eBay product specifications.
