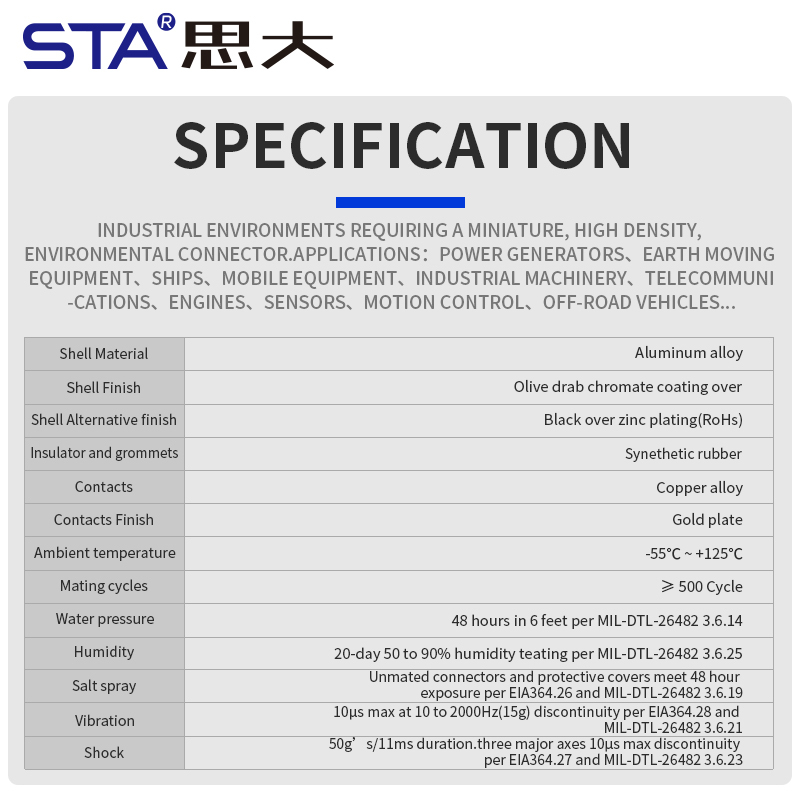

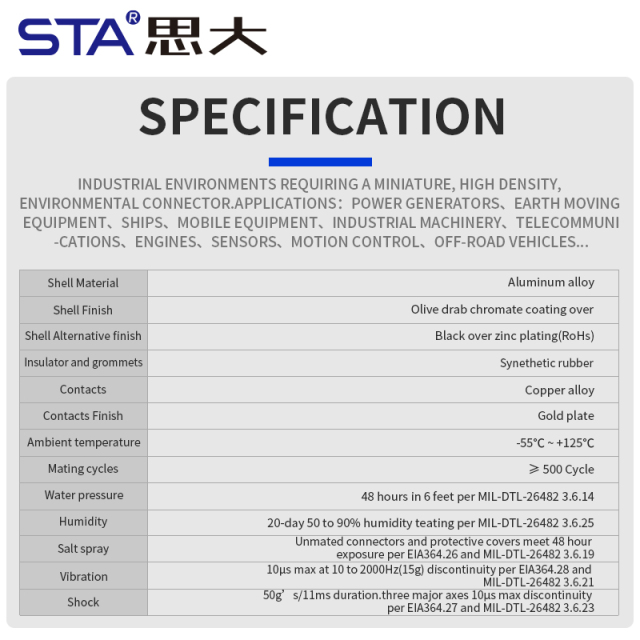

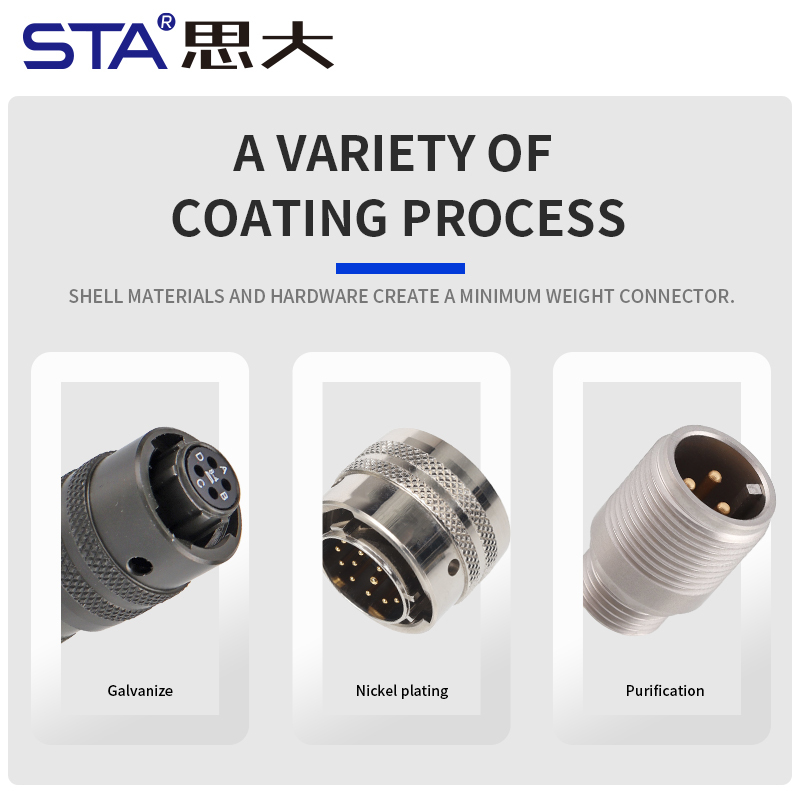

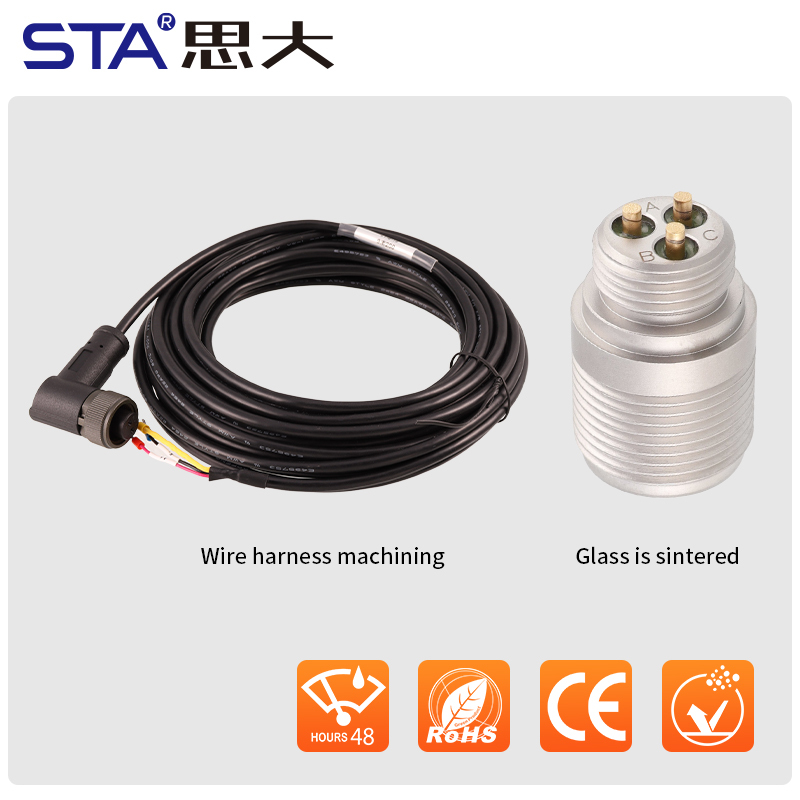

MIL-DTL-26482 is a circular, flat-to-flat electrical connector specification established by the United States Harsh Environment Connectors. The specification defines three types of connectors, namely Type I, Type II, and Type III, which are categorized as standard, medium, and heavy-duty, respectively.
|

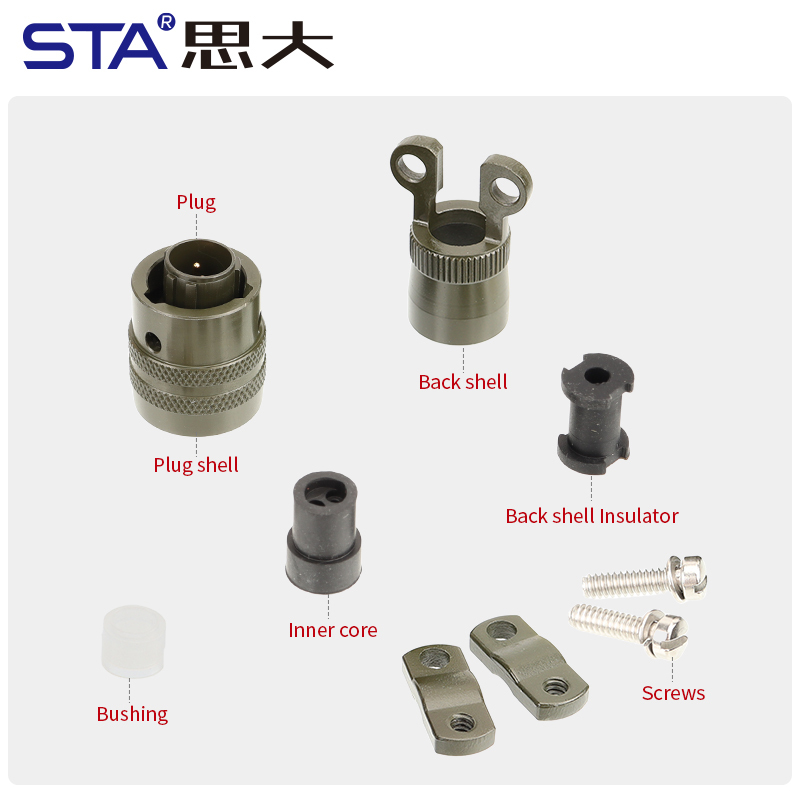

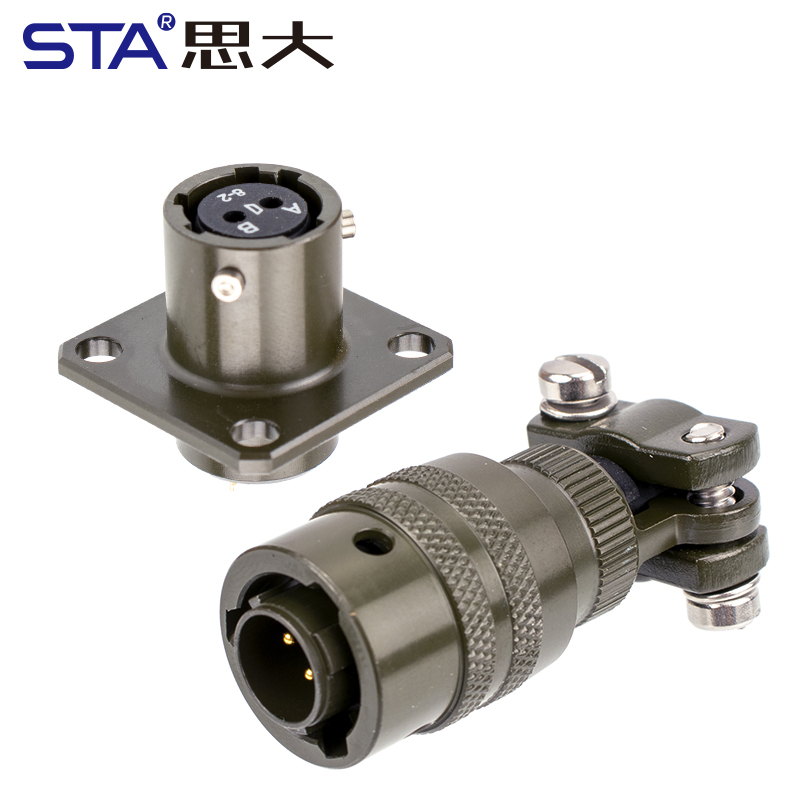

Plug or Receptacle |
||||||
 |
 |
 |
 |
 |
|
 |
|

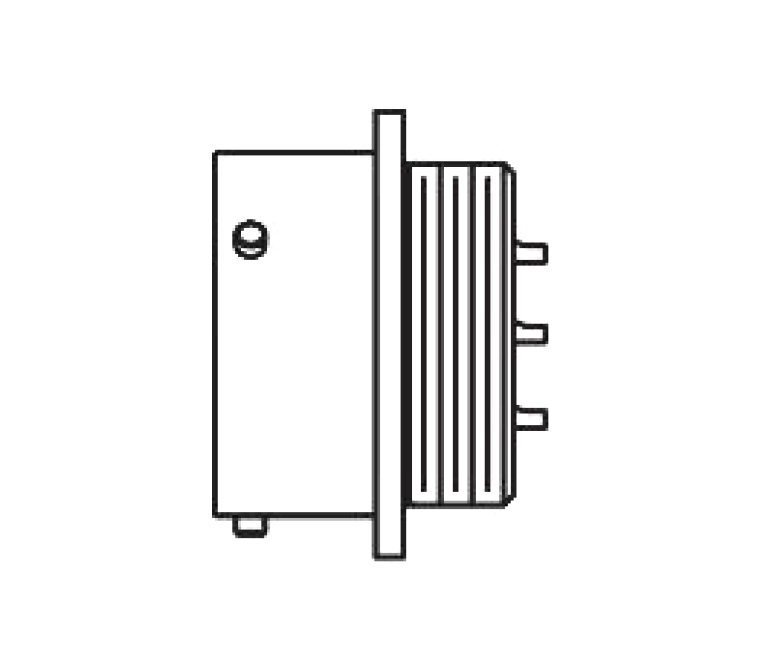

3110(PT00) – Wall Mounting Receptacle |

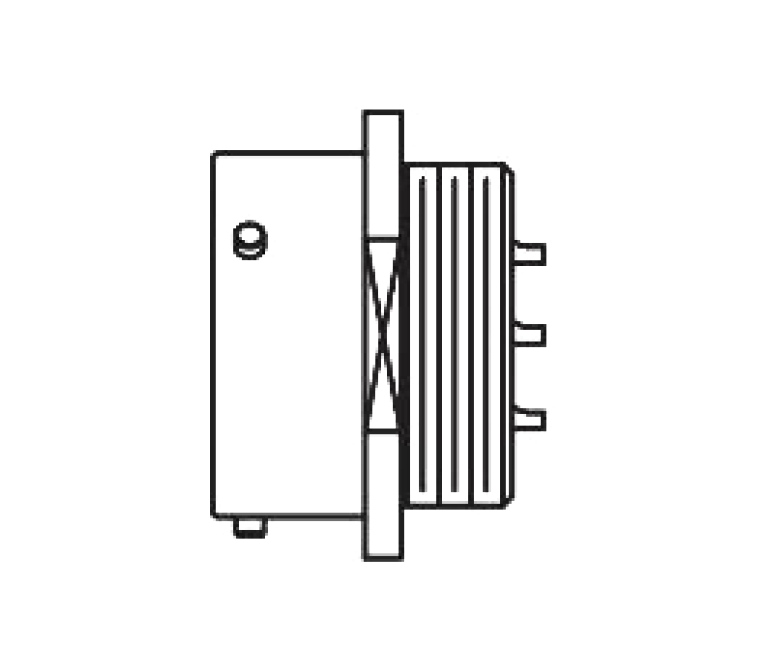

3111(PT01) – Cable Connecting Plug |

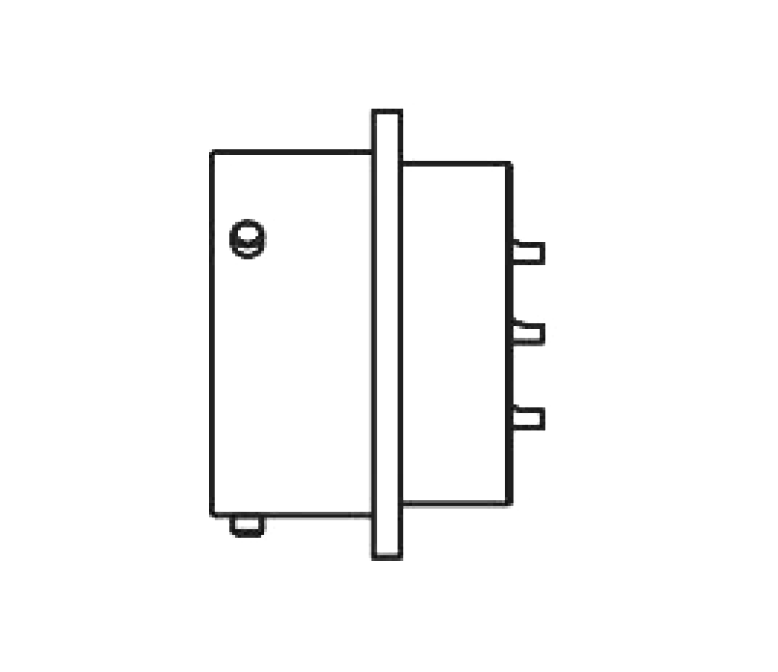

3112(PT02) – Box Mounting Receptacle |

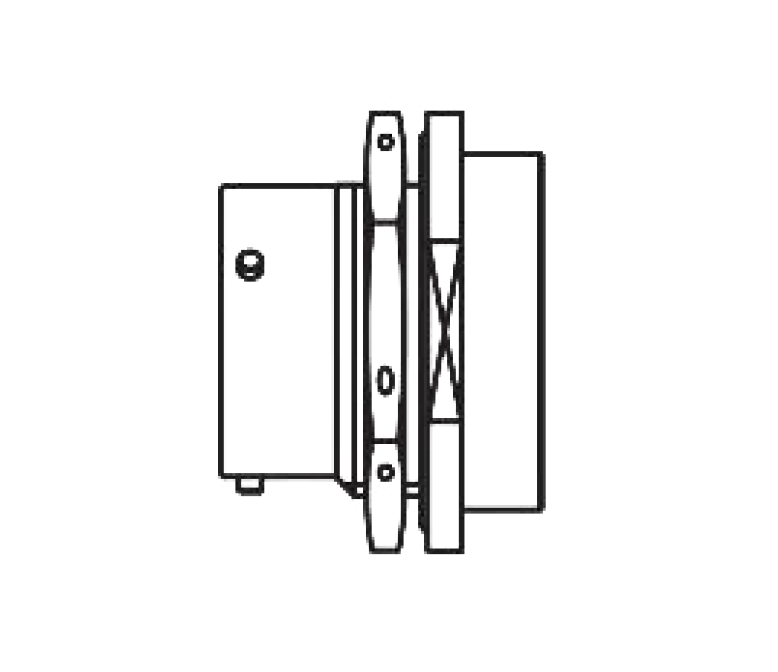

3114(PT07) – Jam Nut Mounting Receptacle |

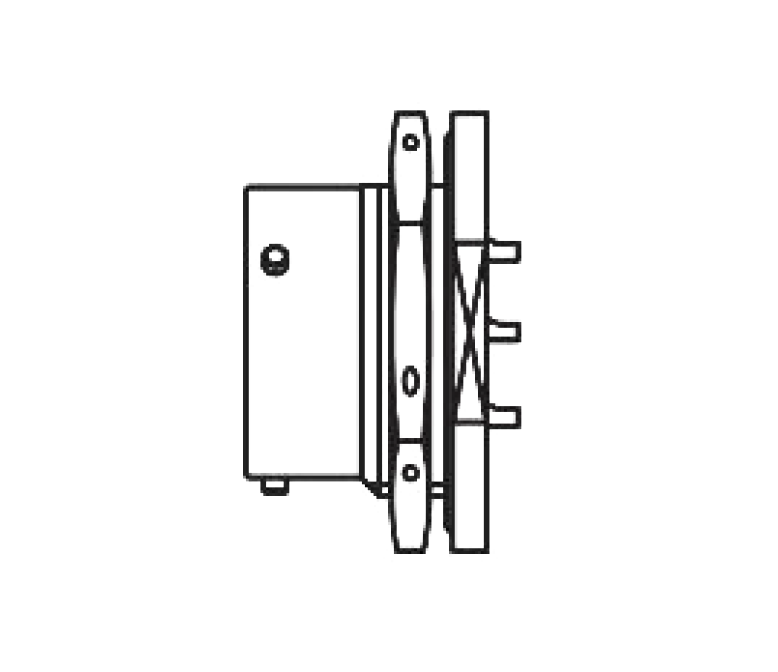

3114A – Jam Nut Receptacle |

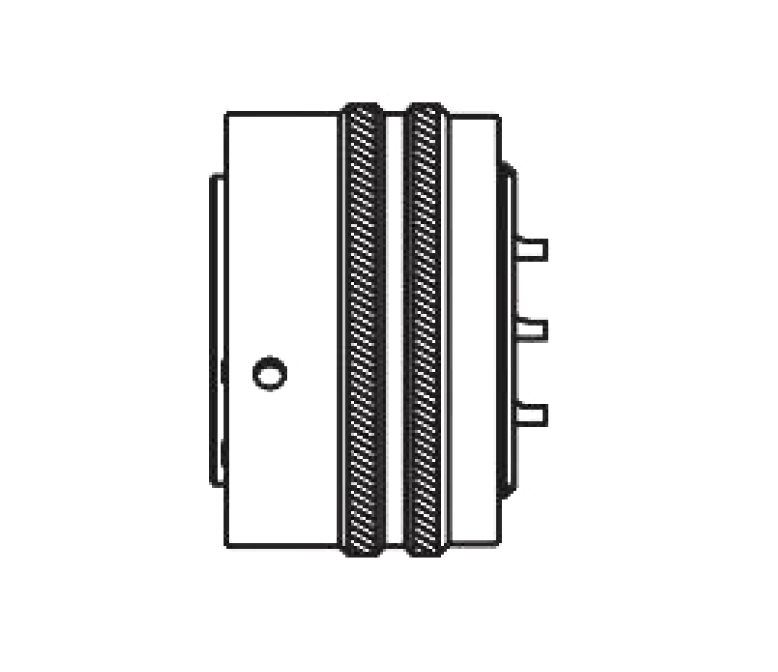

3116(PT06) – Straight Plug |

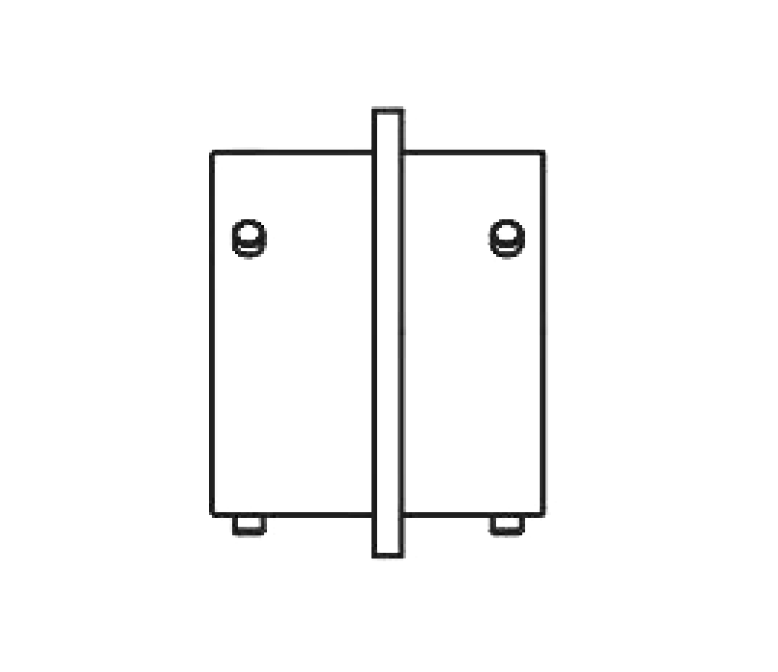

3119(PTB) – Thru-Bulkhead Receptacle |
 |
 |
 |
 |
 |
|

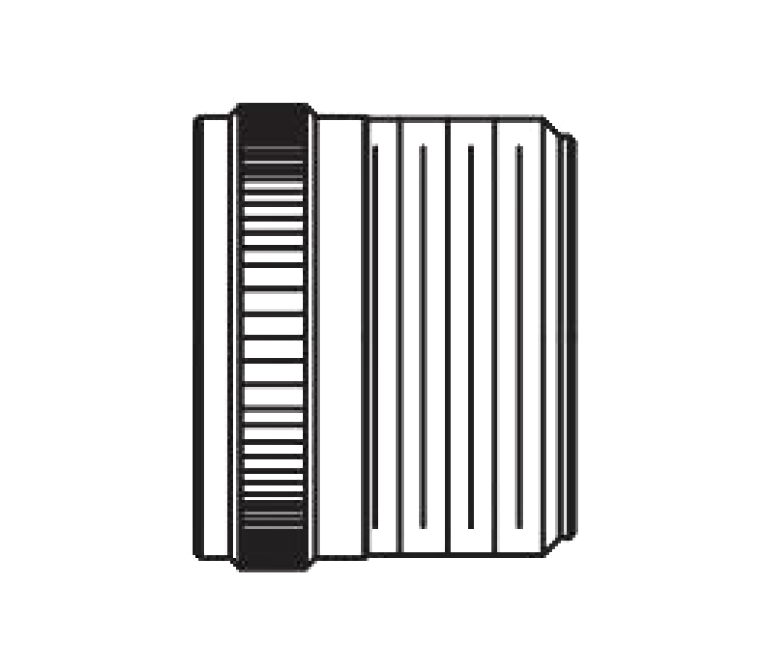

A – General duty, threaded back shell |

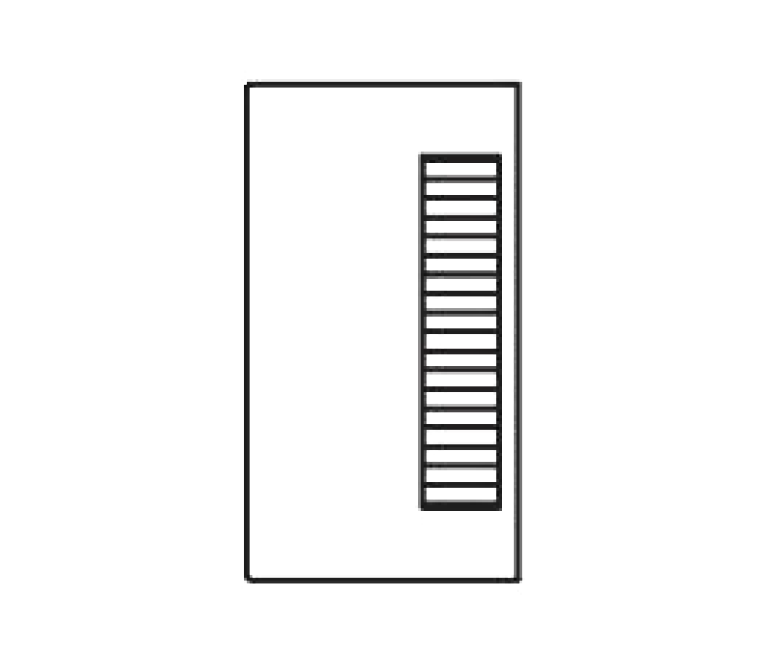

E – Grommet seal expert on MS3112 |

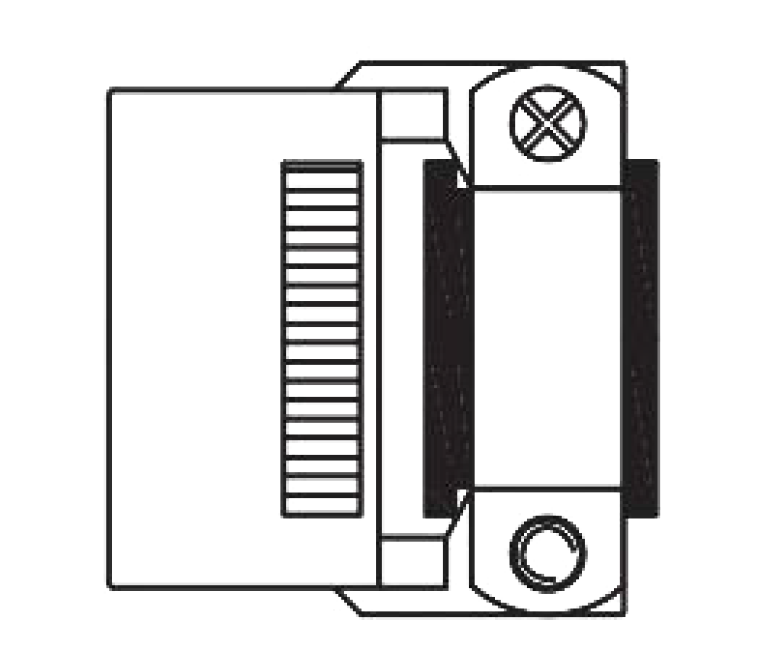

F - Grommet seal with strain relief |

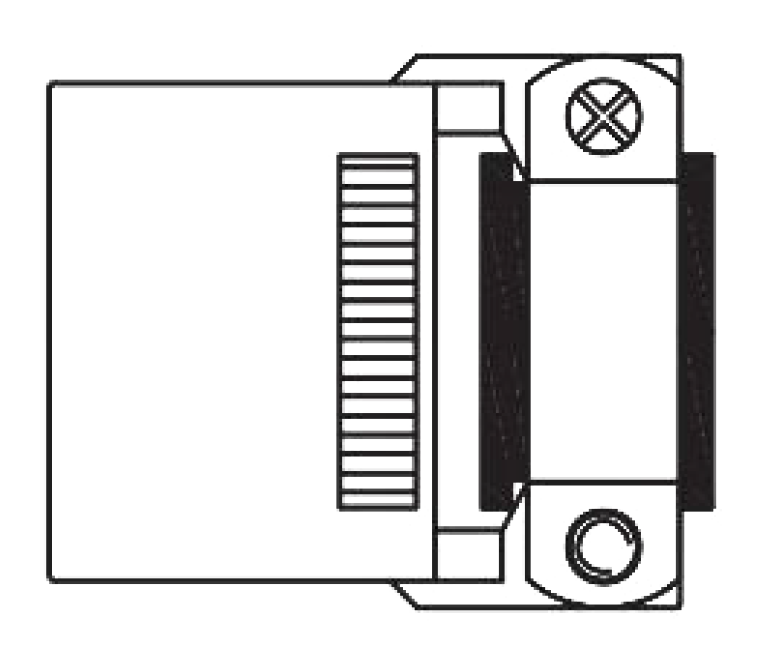

J – Cable seal with clamp (MS3116 only) |

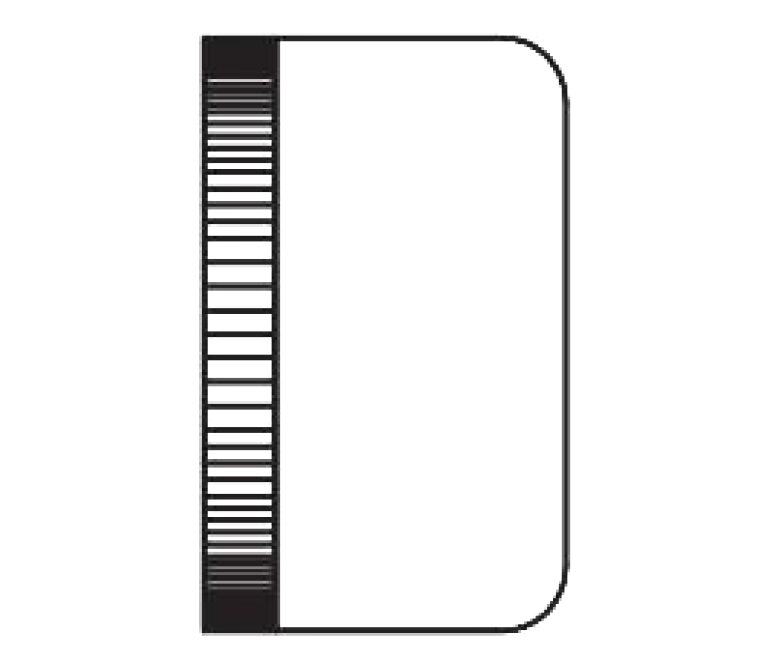

P – Potting seal |
 |
||||
|

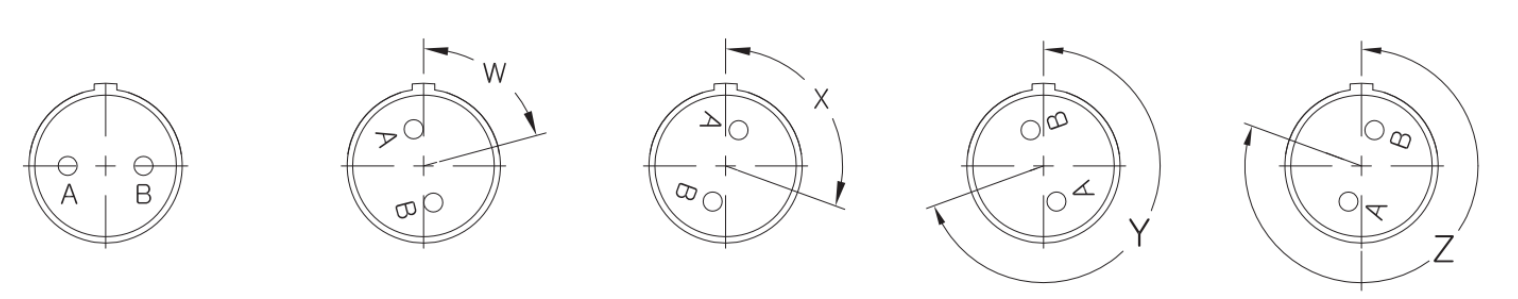

Angular Positions |
Position W |
Position X |
Position Y |
Position Z |
|

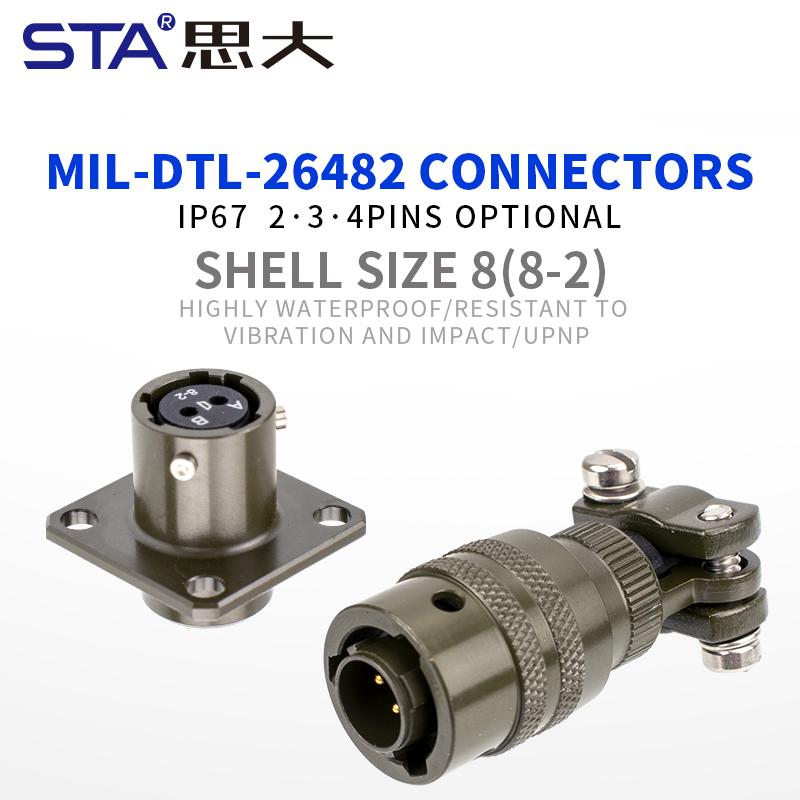

Shell Size 8 |
 |
 |
 |
 |
|
Insert Number: |
8-2 | 8-3 | 8-4 | 8-33 |
|
Number of Contacts: |
2 | 3 | 4 | 3 |
|
Contact Size: |
20 | 20 | 20 | 20 |
