Name: MIL-DTL-26482 8-Shell 3-Pin Plug Receptacle Circular Connector
Brand: STA Connector
Availability: InStock
Rating: 5 (1 reviews)

Description

MIL-DTL-26482 Connectors Specification

Optimized 3-Wire Interface: The 8-3 arrangement is the standard choice for L-N-G power circuits or 3-wire sensor systems. It provides a balanced layout for ground, neutral, and line connections in ultra-compact electronic enclosures.
Instant Bayonet Locking: Our quick-disconnect bayonet system allows for 100% positive mating with only a 1/3 turn. This provides tactile feedback and an audible "click," ensuring the connector remains locked even under extreme mechanical vibration.
Superior Signal Integrity: Equipped with high-conductivity gold-plated contacts, the 8-3 series minimizes contact resistance and prevents oxidation. This ensures consistent electrical performance throughout its 500+ mating cycles lifespan.
Rugged Environmental Sealing: Engineered with a resilient neoprene insert and specialized interfacial seals, it achieves a full IP67 waterproof rating. It effectively blocks dust, moisture, and fuel, making it ideal for harsh outdoor deployment.
Global Standard Compatibility: Fully compliant with MIL-DTL-26482 Series I, our 8-3 connectors are 100% intermateable with Amphenol PT, ITT Cannon KPT, and Souriau 851, offering a reliable alternative for your 2026 supply chain.

Applications

Industrial Pressure Sensors: A reliable 3-pin sensor connector for pressure, temperature, and flow transmitters requiring a stable 4-20mA or voltage signal return.
Aerospace Avionics: Compact miniature circular connectors for flight instrument panels and cockpit lighting controls where weight and space are critical.
Robotic Actuators: High-durability motor control connectors for small servo motors and robotic limb joints in automated production lines.
Field Communication Gear: Rugged tactical radio connectors for portable ground stations and military-grade telecommunication units.
Medical Lab Equipment: Precision medical electronic connectors for diagnostic centrifuges and patient monitoring systems requiring frequent sterilization and use.

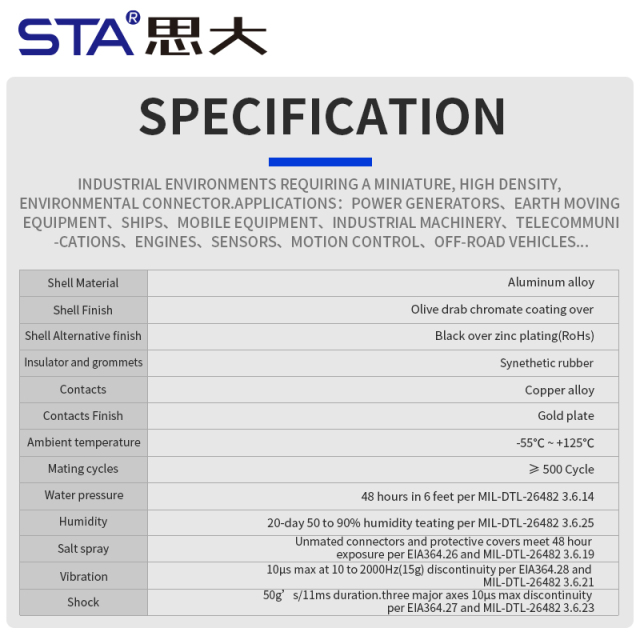

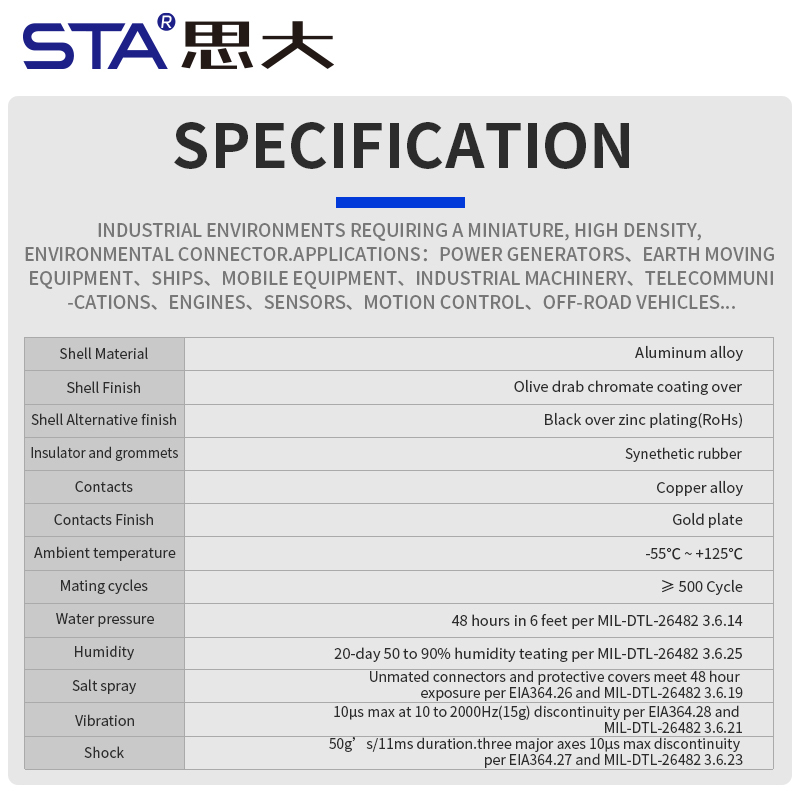

Shell Material:	Aluminum alloy
Shell Plating:	Olive Drab Cadmium/Black Over Zinc Plating
Contact Material:	Copper Alloy
Contact Plating:	Gold Plating
Insulator Material:	Synthetic rubber
Rated voltage:	600V
Rated current:	7.5A
Insulation Resistance:	5,000 Mega ohms minimum (at 25°C)
Contact Resistance:	≤10 mΩ

Plug or Receptacle

MS3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle	MS3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug	MS3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle	MS3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle	MS3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle	MS3116(PT06,PW06,KPT06,85106) – Straight Plug	MS3119(PTB) – Thru-Bulkhead Receptacle


A-General duty, threaded back shell	E-Environmental without Clamp	F-Grommet seal with strain relief	J-Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only)	P- Environmental Potting seal


Angular Positions	Position W	Position X	Position Y	Position Z

Shell Size 8
Insert Number:	8-2	8-3	8-4	8-33
Number of Contacts:	2	3	4	3
Contact Size:	20	20	20	20

Cross-Reference & Compatibility

“A” General Duty / “C” Pressurized“

“A” (SR), “E” (SR), “P” (SR), MS / “F” Strain Relief

E” Open Wire Seal

“P” Potting Boot

“J” Cable Seal

“PG” Cable Gland Seal

PT00A-8-3S,8-3P
SP00A-8-3S,8-3P
PT00C-8-3S,8-3P
PT01A-8-3S,8-3P
PT06A-8-3S,8-3P
SP06A-8-3S,8-3P
PTG06A-8-3S,8-3P
PT07A-8-3S,8-3P
PT07C-8-3S,8-3P

PT00A-8-3S,8-3P (SR)
SP00A-8-3S,8-3P (SR)
PT00E-8-3S,8-3P (SR)
SP00E-8-3S,8-3P (SR)
PT00P-8-3S,8-3P (SR)
SP00P-8-3S,8-3P (SR)
MS3110F-8-3S,8-3P
PT01A-8-3S,8-3P (SR)
PT01E-8-3S,8-3P (SR)
PT01P-8-3S,8-3P (SR)
MS3111F-8-3S,MS3111F-8-3P
PT01A-8-3S,PT01A8-3P (SR)
PT06A-8-3S,PT06A-8-3P (SR)
SP06A-8-3S,SP06A-8-3P (SR)
PTG06A-8-3S,PTG06A-8-3P (SR)
PT06E-8-3S,PT06E-8-3P (SR)
SP06E-8-3S,SP06E-8-3P (SR)
PTG06E-8-3S,PTG06E-8-3P (SR)
PT06P-8-3S,PT06P-8-3P (SR)
SP06P-8-3S,SP06P-8-3P (SR)
PTG06P-8-3S,PTG06P-8-3P (SR)
MS3116F-8-3S,MS3116F-8-3P
PT07A-8-3S,PT07A-8-3P (SR)
SP07A-8-3S,SP07A-8-3P (SR)
PT07E-8-3S,PT07E-8-3P (SR)
MS3114F-8-3S,8-3P

PT00E-8-3S,PT00E-8-3P
SP00E-8-3S,SP00E-8-3P
MS3110E-8-3S,MS3110E-8-3P
PT01E-8-3S,PT01E-8-3P
MS3111E-8-3S,MS3111E-8-3P
PT01E-8-3S,PT01E-8-3P
MS3111E-8-3S,MS3111E-8-3P
PT06E-8-3S,PT06E-8-3P
SP06E-8-3S,SP06E-8-3P
PTG06E-8-3S,PTG06E-8-3P
MS3116E-8-3S,
MS3116E-8-3P
PT07E-8-3S,8-3P
SP07E-8-3S,8-3P
MS3114E-8-3S,
MS3114E-8-3P

PT00P-8-3S,PT00P-8-3P
SP00P-8-3S,SP00P-8-3P
MS3110P-8-3S,
MS3110P-8-3P,
PT01P-8-3S,PT01P-8-3P
MS3111P-8-3S,MS3111P8-3P
PT01P-8-3S,PT01P-8-3P
MS3111P-8-3S,MS3111P-8-3P
PT06P-8-3S,PT06P-8-3P
SP06P-8-3S,SP06P-8-3P
PTG06P-8-3S,PTG06P-8-3P
MS3116P-8-3S,MS3116P-8-3P
PT07P-8-3S,PT07P-8-3P
MS3114P-8-3S,MS3114P-8-3P

MS3110J-8-3S
MS3110J-8-3P

MS3116J-8-3S
MS3116J-8-3P

PT01PG-8-3S
PT01PG-8-3P
PT06PG-8-3S
PT06PG-8-3P

PT02 (MS3112)SP02 box mounting receptacle

PT02A-8-3S,PT02A-8-3P
SP02A-8-3S,SP02A-8-3P
PT02C-8-3S,PT02C-8-3P
SP02C-8-3S,SP02C-8-3P

PT02E-8-3S,
PT02E-8-3P,
SP02E-8-3S,
SP02E-8-3P,
MS3112E-8-3S,
MS3112E-8-3P

PT02P-8-3S,
PT02P-8-3P,
SP02P-8-3S,
SP02P-8-3P,
MS3112P-8-3S,
MS3112P-8-3P
