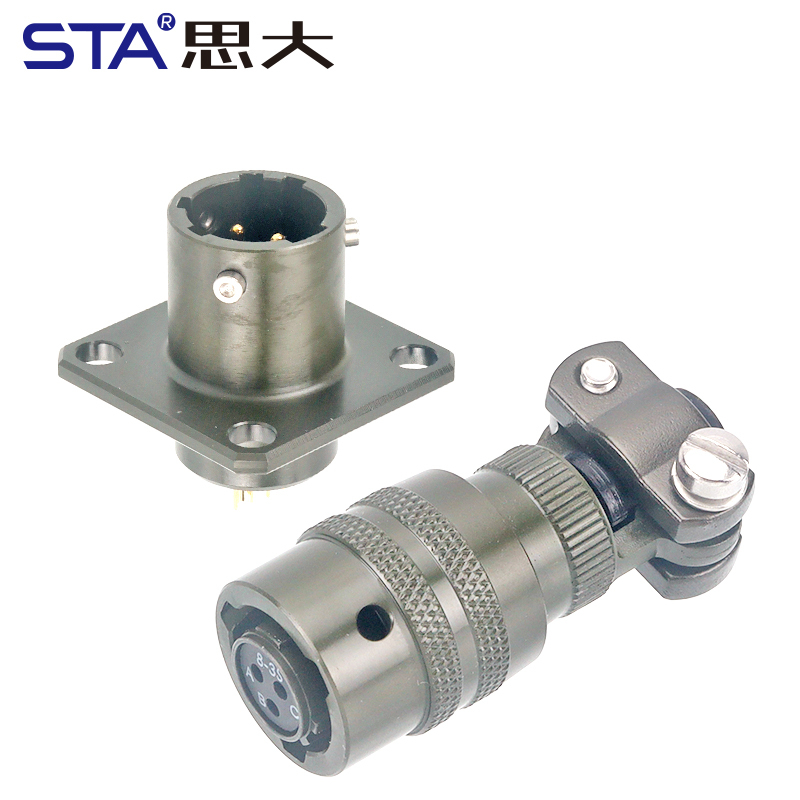

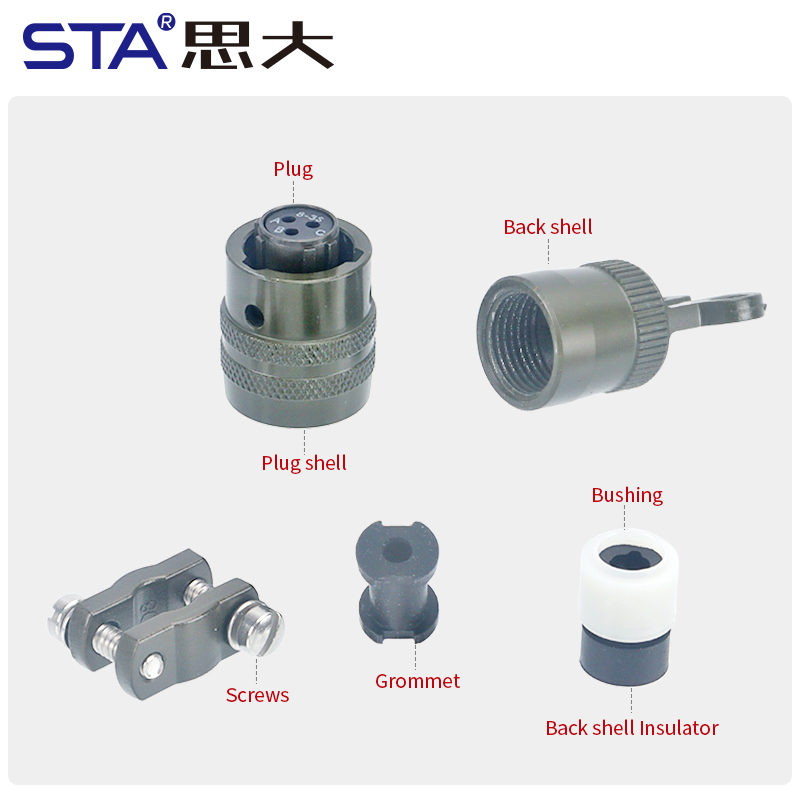

Optimized 8Shell 3-pin interface
Balanced configuration suitable for mixed signal-and-power transmission, offering reliable separation and noise-resistant performance across applications.
Quick-connect bayonet system
Enables rapid field installation, secure mechanical locking, and high resistance to vibration common in mobile or airborne systems.

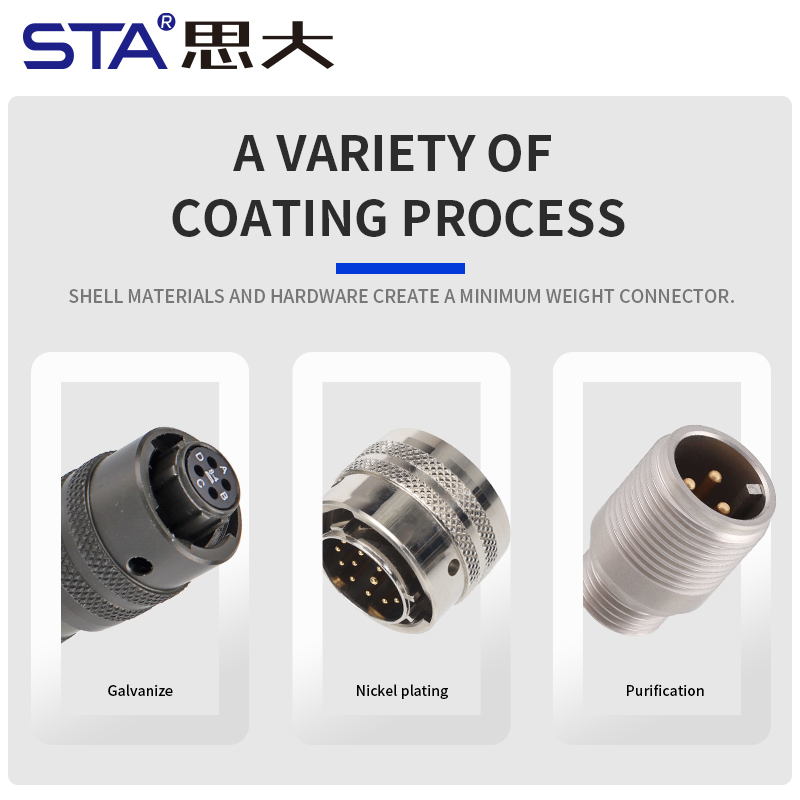

Strong corrosion-proof housing
Aluminum alloy with military-grade plating protects the connector from oxidation, chemicals, and long-term environmental exposure.
Precision gold-plated contacts
Low-loss electrical transmission with superior corrosion resistance; designed for long-term reliability in harsh conditions.
High-durability insulation
Rubber insulators maintain seal integrity and dielectric strength even under rapid thermal cycling or sustained high humidity.
Aerospace sensor and system interconnection
Military handheld devices and portable power units
Robotics and automation equipment
Petrochemical monitoring and control systems
Heavy-duty outdoor instrumentation
Plug or Receptacle |
||||||
|
|
|
|
|
|
|
|
|

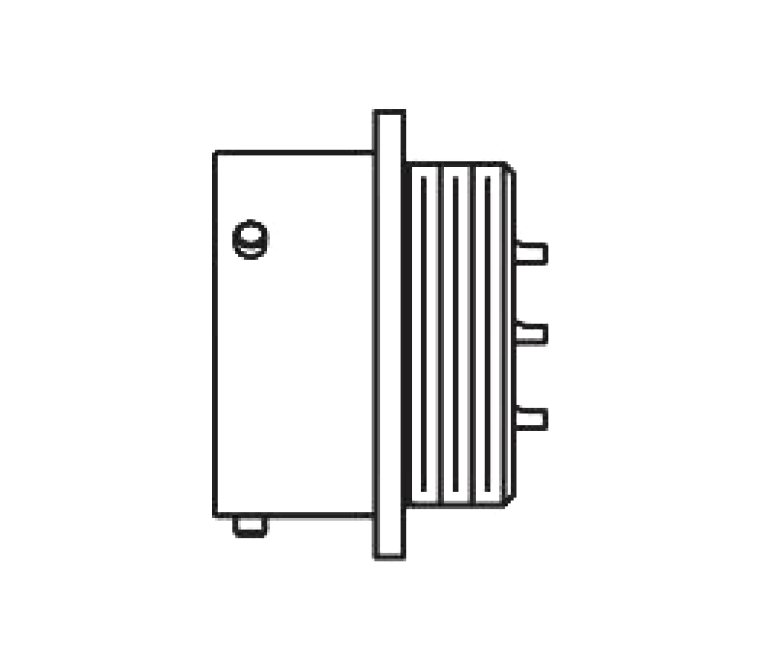

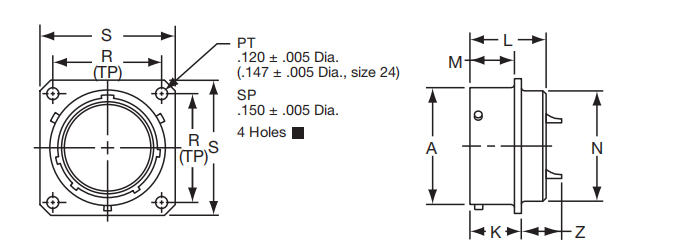

3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle |

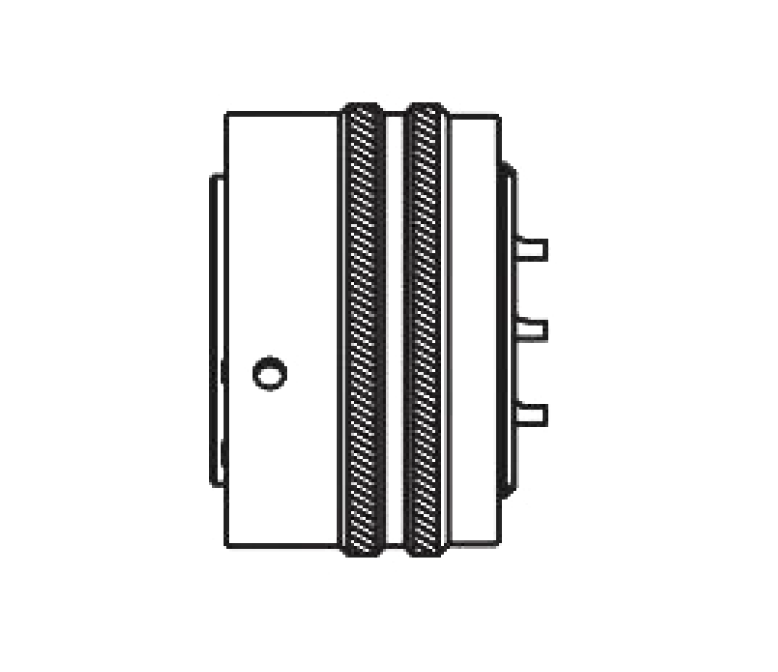

3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug |

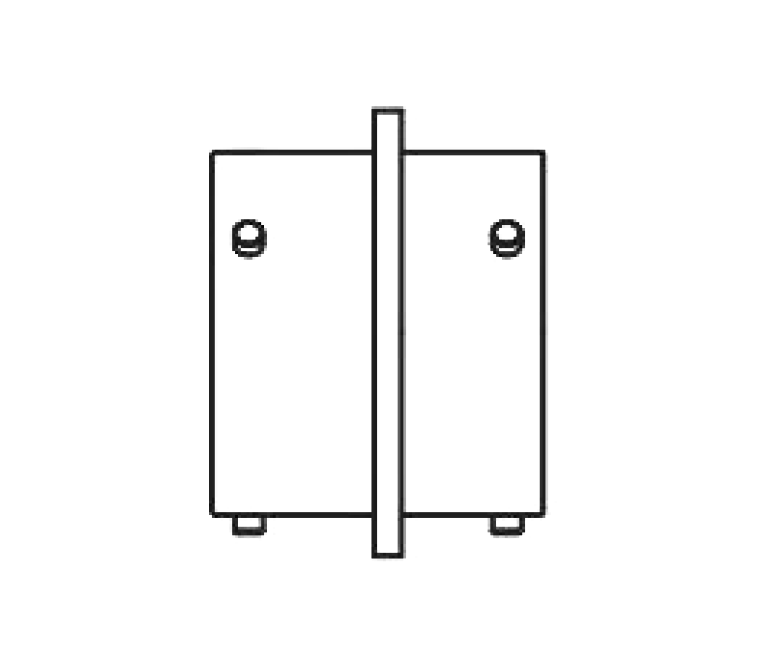

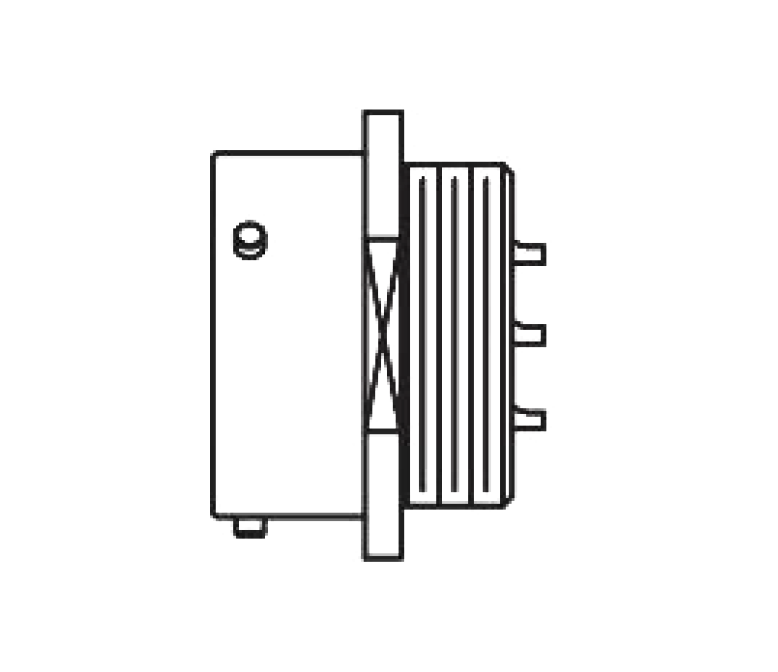

3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle |

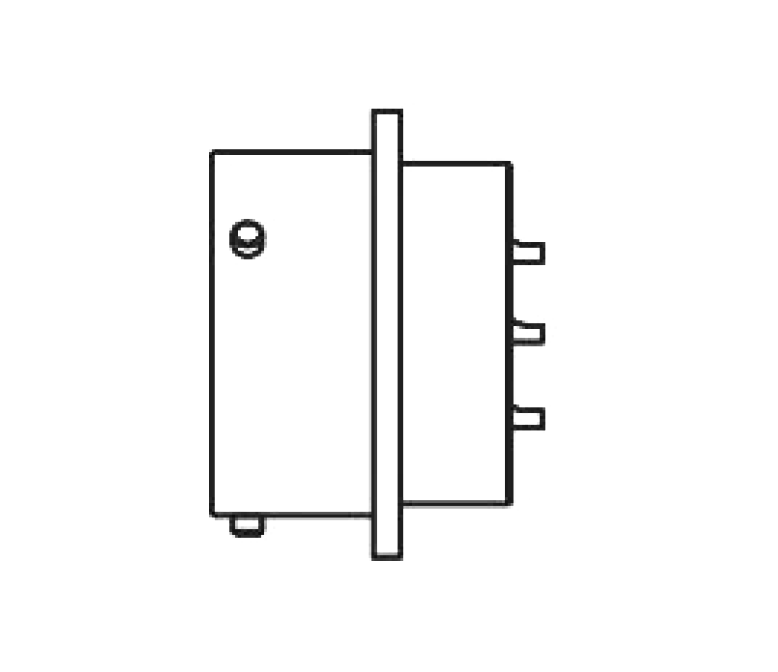

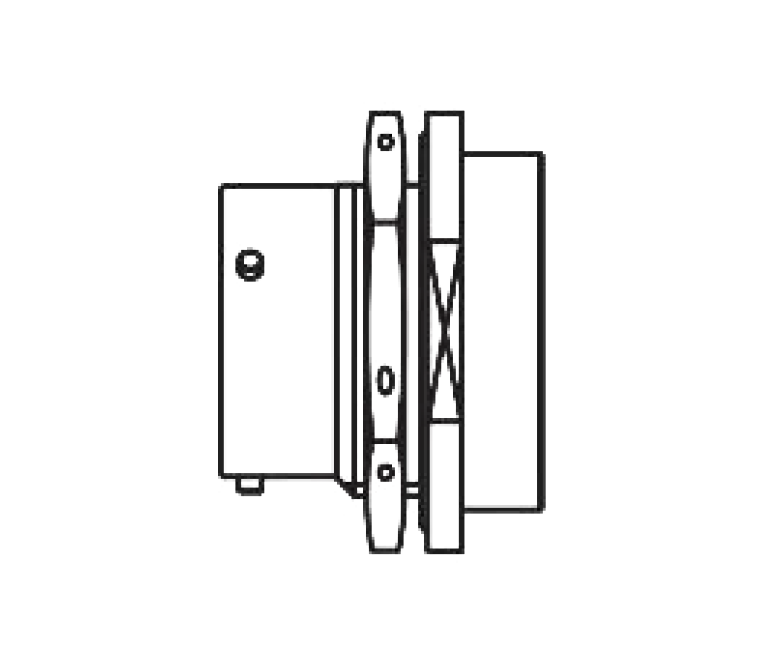

3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle |
3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle |
3116(PT06,PW06,KPT06,85106) – Straight Plug |

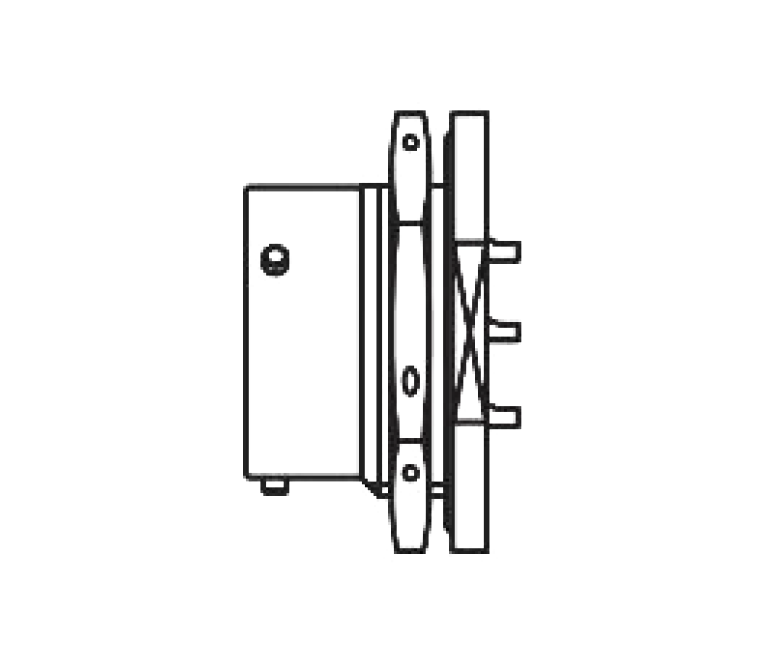

3119(PTB) – Thru-Bulkhead Receptacle |
 |
 |
 |
 |
 |
|
A-General duty, threaded back shell |
E-Environmental without Clamp |
F-Grommet seal with strain relief |
J-Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only) |
P- Environmental Potting seal |
 |
||||
|
Angular Positions |
Position W |
Position X |
Position Y |
Position Z |
|
Shell Size 8 |
 |
 |
 |
 |
|
Insert Number: |
8-2 | 8-3 | 8-4 | 8-33 |
|
Number of Contacts: |
2 | 3 | 4 | 3 |
|
Contact Size: |
20 | 20 | 20 | 20 |

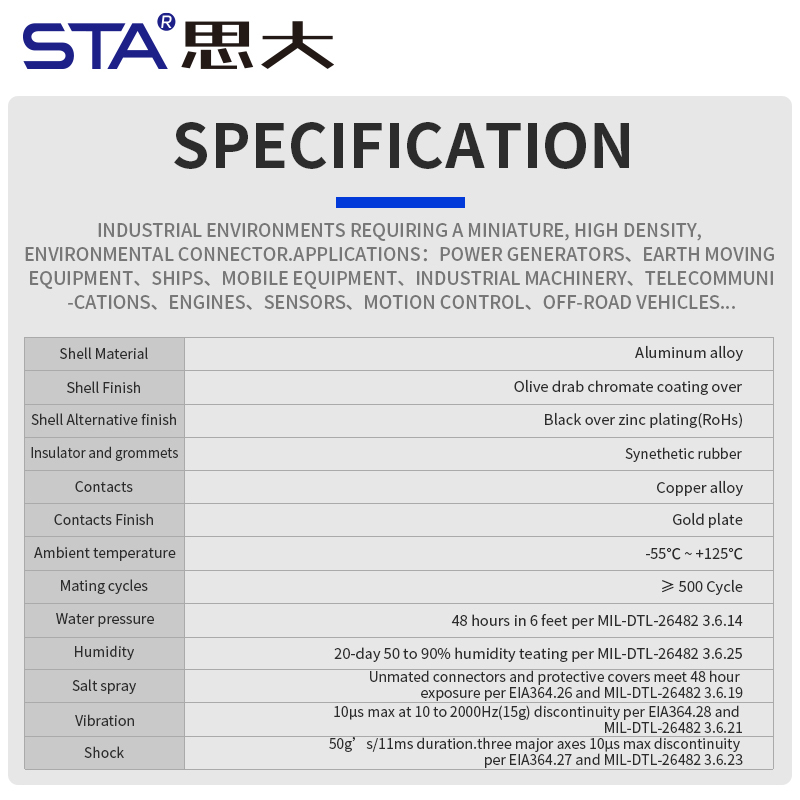

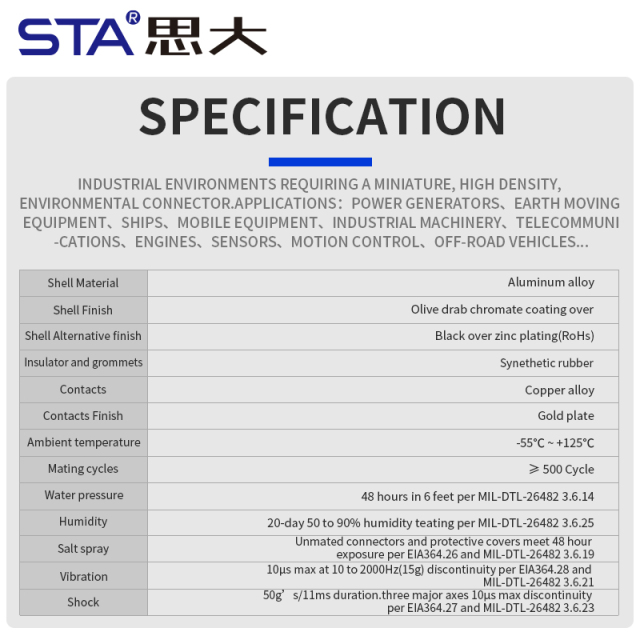

| Shell Material: | Aluminum alloy |
| Shell Plating: | Olive Drab Cadmium/Black Over Zinc Plating |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Plating |
| Insulator Material: | Synthetic rubber |
| Rated voltage: | 600V |
| Rated current: | 7.5A |
| Insulation Resistance: | 5,000 Mega ohms minimum (at 25°C) |
| Contact Resistance: | ≤10 mΩ |
Cross-Reference & Compatibility |
|||||
|
“A” General Duty / “C” Pressurized“ |
“A” (SR), “E” (SR), “P” (SR), MS / “F” Strain Relief |
E” Open Wire Seal |
“P” Potting Boot |
“J” Cable Seal |
“PG” Cable Gland Seal |
| PT00A-8-3S,8-3P SP00A-8-3S,8-3P PT00C-8-3S,8-3P PT01A-8-3S,8-3P PT01A-8-3S,8-3P PT06A-8-3S,8-3P SP06A-8-3S,8-3P PTG06A-8-3S,8-3P PT07A-8-3S,8-3P PT07C-8-3S,8-3P |
PT00A-8-3S,8-3P (SR) SP00A-8-3S,8-3P (SR) PT00E-8-3S,8-3P (SR) SP00E-8-3S,8-3P (SR) PT00P-8-3S,8-3P (SR) SP00P-8-3S,8-3P (SR) MS3110F-8-3S,8-3P PT01A-8-3S,8-3P (SR) PT01E-8-3S,8-3P (SR) PT01P-8-3S,8-3P (SR) MS3111F-8-3S,8-3P PT01A-8-3S,8-3P (SR) PT01E-8-3S,8-3P (SR) PT01P-8-3S,8-3P (SR) MS3111F-8-3S,8-3P PT06A-8-3S,8-3P (SR) SP06A-8-3S,8-3P (SR) PTG06A-8-3S,8-3P (SR) PT06E-8-3S,8-3P (SR) SP06E-8-3S,8-3P (SR) PTG06E-8-3S,8-3P (SR) PT06P-8-3S,8-3P (SR) SP06P-8-3S,8-3P (SR) PTG06P-8-3S,8-3P (SR) MS3116F-8-3S,8-3P PT07A-8-3S,8-3P (SR) SP07A-8-3S,8-3P (SR) PT07E-8-3S,8-3P (SR) MS3114F-8-3S,8-3P |
PT00E-8-3S,8-3P SP00E-8-3S,8-3P MS3110E-8-3S,8-3P PT01E-8-3S,8-3P MS3111E-8-3S,8-3P PT01E-8-3S,8-3P MS3111E-8-3S,8-3P PT06E-8-3S,8-3P SP06E-8-3S,8-3P PTG06E-8-3S,8-3P MS3116E-8-3S, MS3116E-8-3P PT07E-8-3S,8-3P SP07E-8-3S,8-3P MS3114E-8-3S, MS3114E-8-3P |
PT00P-8-3S,8-3P |
MS3110J-8-3S MS3116J-8-3P
|
PT01PG-8-3S |
PT02 (MS3112)SP02 box mounting receptacle |
PT02A-8-3S,PT02A-8-3P SP02A-8-3S,SP02A-8-3P PT02C-8-3S,PT02C-8-3P SP02C-8-3S,SP02C-8-3P |
PT02E-8-3S,PT02E-8-3P SP02E-8-3S,SP02E-8-3P MS3112E-8-3S,MS3112E-8-3P |
PT02P-8-3S,PT02P-8-3P SP02P-8-3S,SP02P-8-3P MS3112P-8-3S,MS3112P-8-3P |
