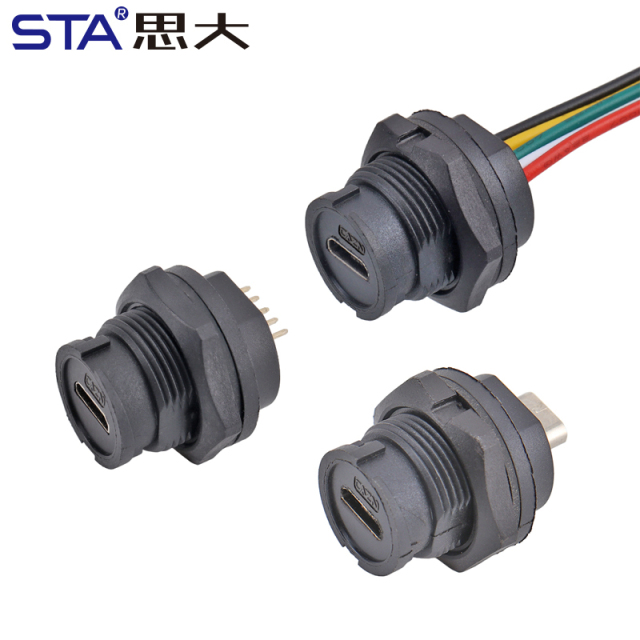

Micro USB Waterproof Socket IP67/IP68 Bayonet

Name: Micro USB Waterproof Socket IP67/IP68 Bayonet
Brand: STA Connector
SKU: Bayonet Micro USB Socket
Availability: InStock
Rating: 5 (1 reviews)

No.Bayonet Micro USB Socket

The waterproof Micro USB Socket series with bayonet mount is designed for panel and PCB mounting in equipment operating in wet, dusty, and vibration-prone environments. These connectors comply with the USB 2.0 standard and ensure stable data and power transfer. The PA66 housing with V-0 fire rating and IP67/IP68 protection rating make these Micro USB sockets a reliable solution for industrial and outdoor electronics.

Connector Type

Micro USB Waterproof Socket

USB Standard

USB 2.0

Coupling Type

Bayonet

Connector Type:

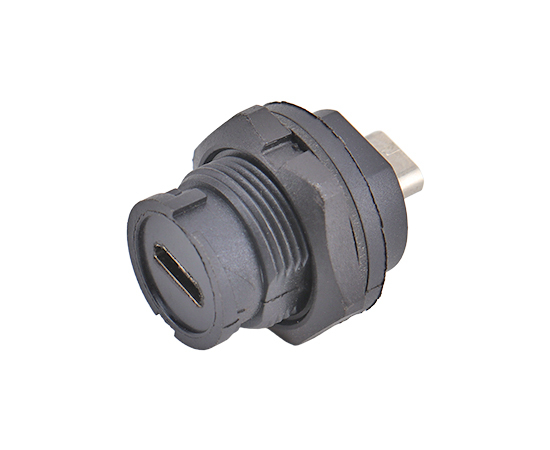

MICRO USB Female to Female Back Mount Receptacle(Bayonet)

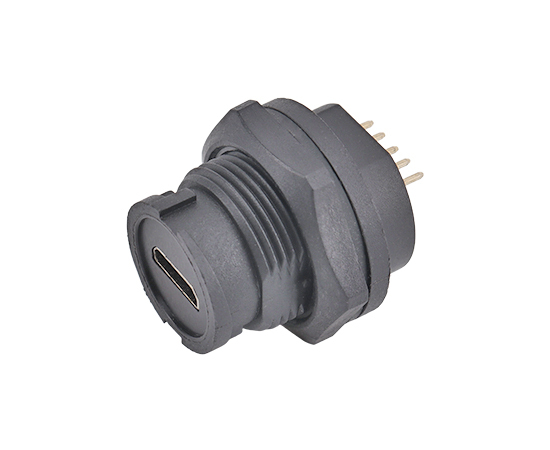

MICRO USB Female Back Mount PCB Receptacle(Bayonet)

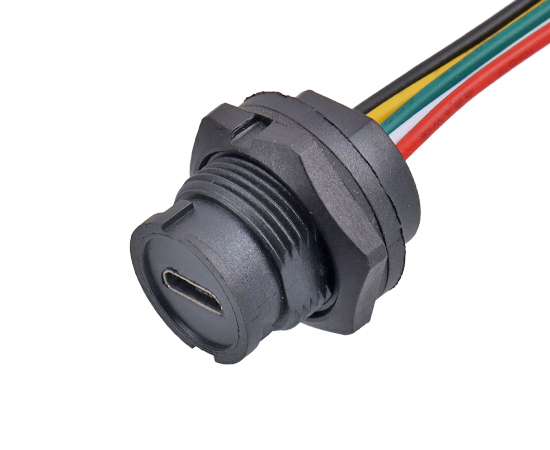

MICRO USB Female Back Mount Receptacle With Wire(Bayonet)

E10 Dust Cover (Bayonet) Adapts to Micro USB

E10 Dust Cover Latch (Bayonet) Adapts to Micro USB

GET A QUOTE

Description

Reliable bayonet connection (Bayonet B)

The bayonet-style Micro USB socket ensures quick connection and vibration resistance in industrial environments.

IP67/IP68 protection rating

The waterproof design effectively protects the connector from water, dust, and dirt during outdoor installations.

Flexible mounting options

Panel-mount, PCB-mount, and cable-mount versions are available, simplifying integration into various devices.

USB 2.0 compatibility

Ensures stable data and power transmission for sensors, controllers, and embedded systems.

Industrial materials and customization

Brass contacts, a PA66 V-0 housing, and shielding options make the connector suitable for OEM projects.

MICRO USB Female to Female Back Mount Receptacle(Bayonet)	MICRO USB Female Back Mount PCB Receptacle(Bayonet)

MICRO USB Female Back Mount Receptacle With Wire(Bayonet)	E10 5/8 "-27UNS U.S. standard screw Dust Cover Adapts to Micro USB (Bayonet)

Shell material	Thermoplastic plastic PA66, flame retardant grade: V-0
Contact material	Brass
Cable material	PVC
Waterproof grade	IP67，IP68
Rated voltage	30V
Rated current	1.5A
Insulation resistance	2000 mΩ
Applicable temperature	-40℃ ~ +105℃
Durability	≥500(Cycles)

Application Scenarios

Industrial control panels and controllers

Built-in USB interfaces in sealed enclosures

Outdoor electronic equipment

Automation and monitoring systems

Industrial electronics with IP67/IP68 requirements

FAQ

Q: What are the advantages of a bayonet-style Micro USB connector?

A: The bayonet mount ensures quick installation and secure hold, even with vibration.

Q: Is the connector suitable for PCB mounting?

A: Yes, a Micro USB Female Back Mount PCB Receptacle version is available.

Q: Can I order a cabled version?

A: Yes, a cabled configuration is available and can be customized.

Q: Is shielding provided?

A: Shielding is available upon request.
