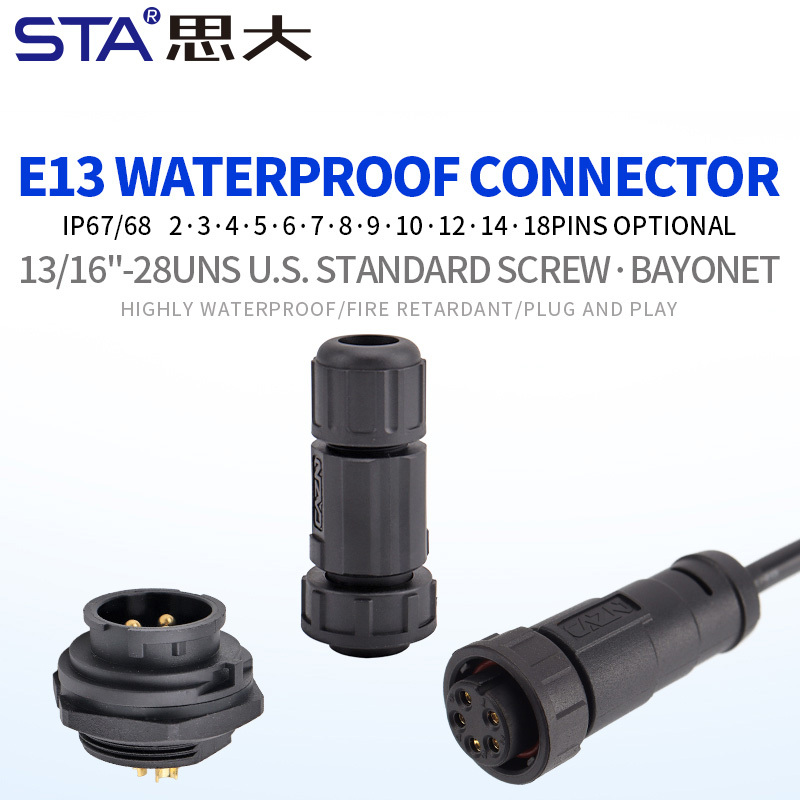

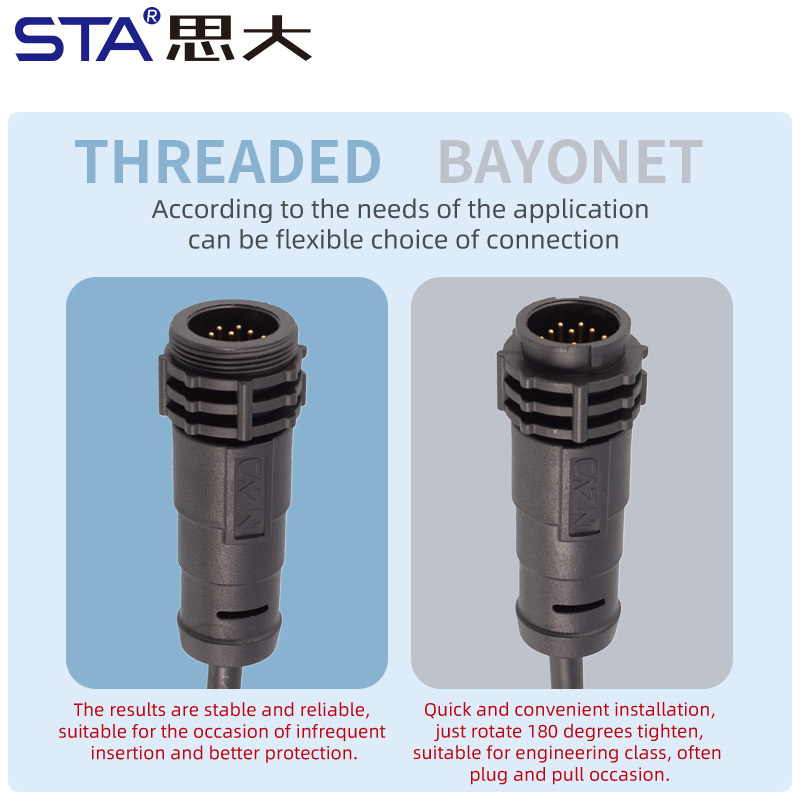

Quick 180° Bayonet Connection
The bayonet mechanism allows for a simple 180° twist, ensuring a secure connection even with frequent connection and disconnection.
High IP67/IP68 protection rating
The connector is effectively protected against water, dust, and dirt, making it ideal for outdoor use and in humid environments.

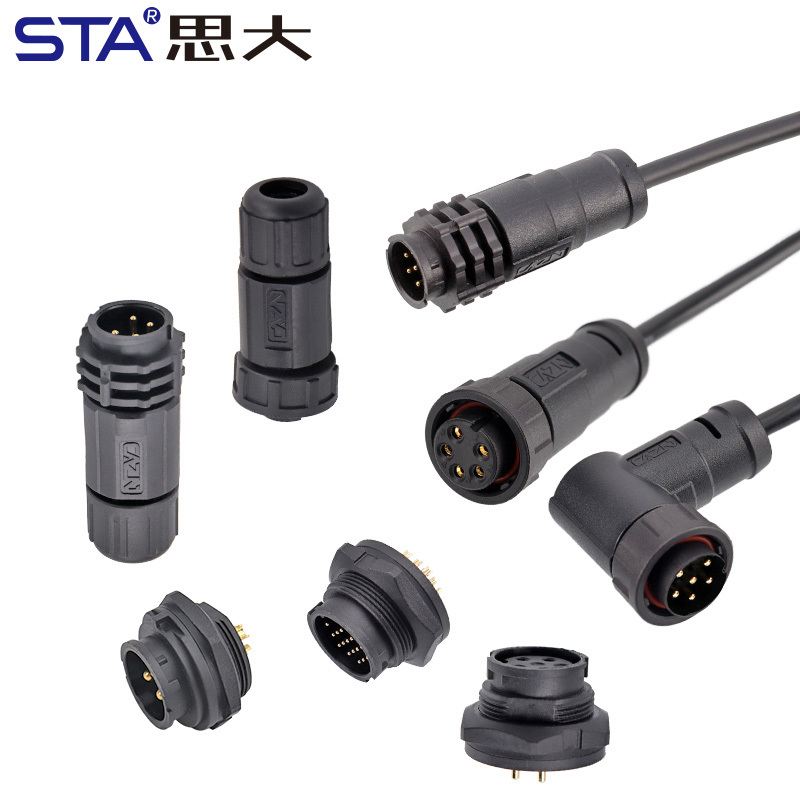

Wide Selection of Contacts and Codings
Support for configurations from 2 to 18 contacts, as well as B-code (2/3/4 pin) and C-code (8 pin), simplifies integration into various control and power systems.

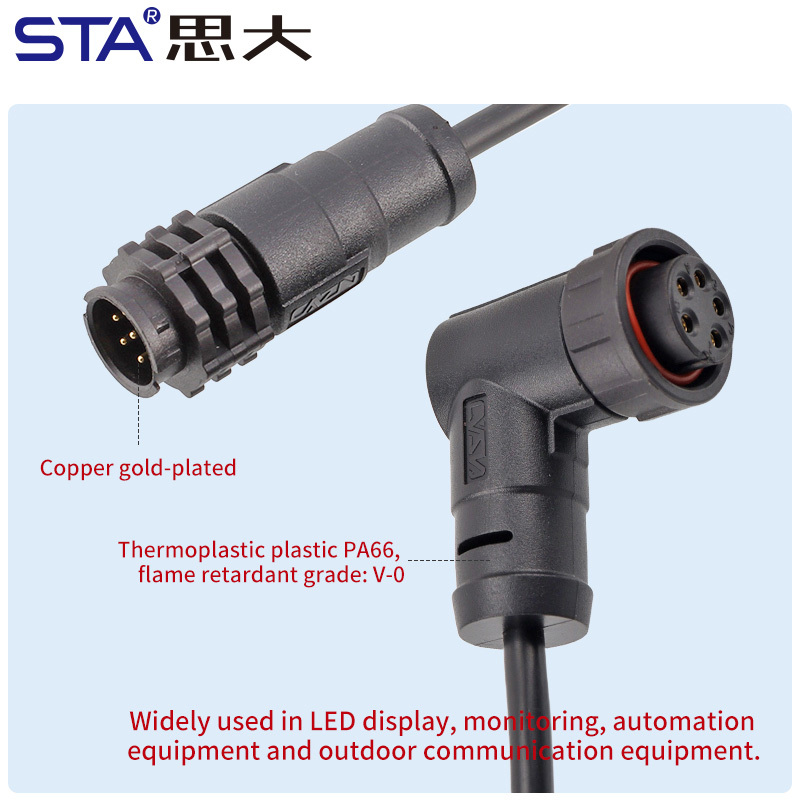

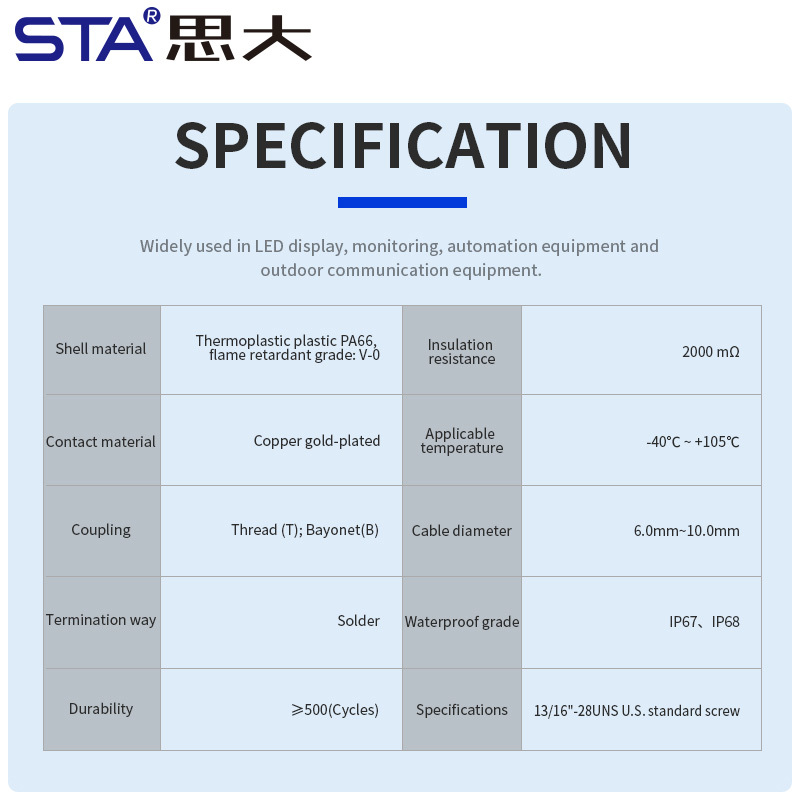

Reliable Industrial-Grade Materials

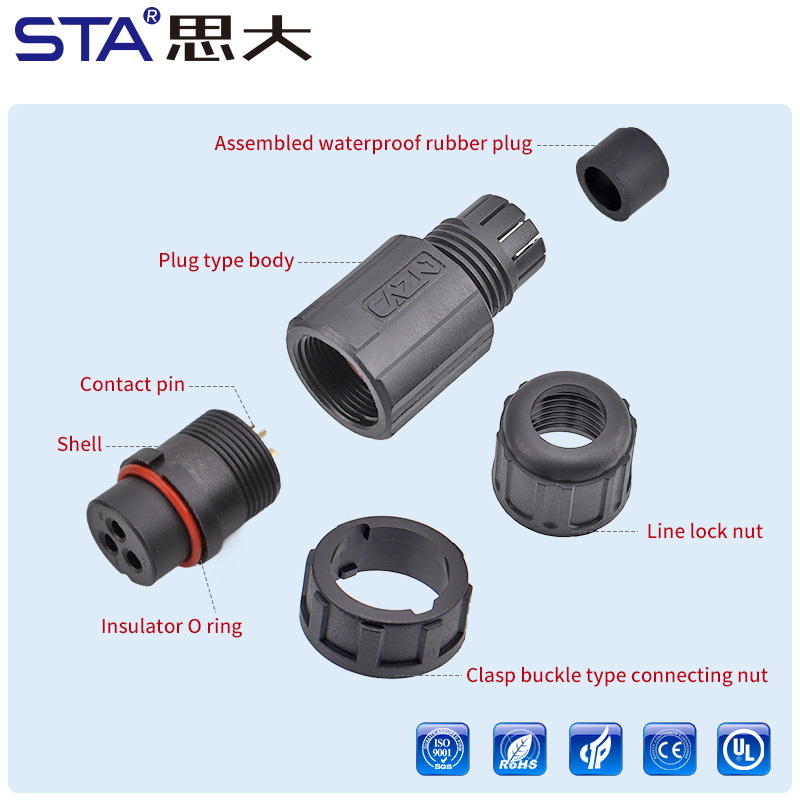

Gold-plated copper contacts provide low contact resistance, while the PA66 V-0 housing is resistant to heat and mechanical stress.
Flexible installation and cable connection
Compatible with cables with diameters of 6–10 mm, supports 14/18/20 AWG conductors, and is suitable for field assembly and molded applications.
Application Scenarios
Industrial automation and control systems
Outdoor communication equipment
LED displays and lighting systems
Control and monitoring in harsh environments
Engineering projects with frequent connector connections
FAQ
1. What are the advantages of the E13 bayonet connector?
It provides quick and secure tool-free connection, especially with frequent mating cycles.
2. Is the connector suitable for outdoor use?
Yes, the IP67/IP68 protection rating guarantees stable operation in rain and dusty environments.
3. Can I choose different contact options?
The connector is available with 2 to 18 contacts, including B and C coding.

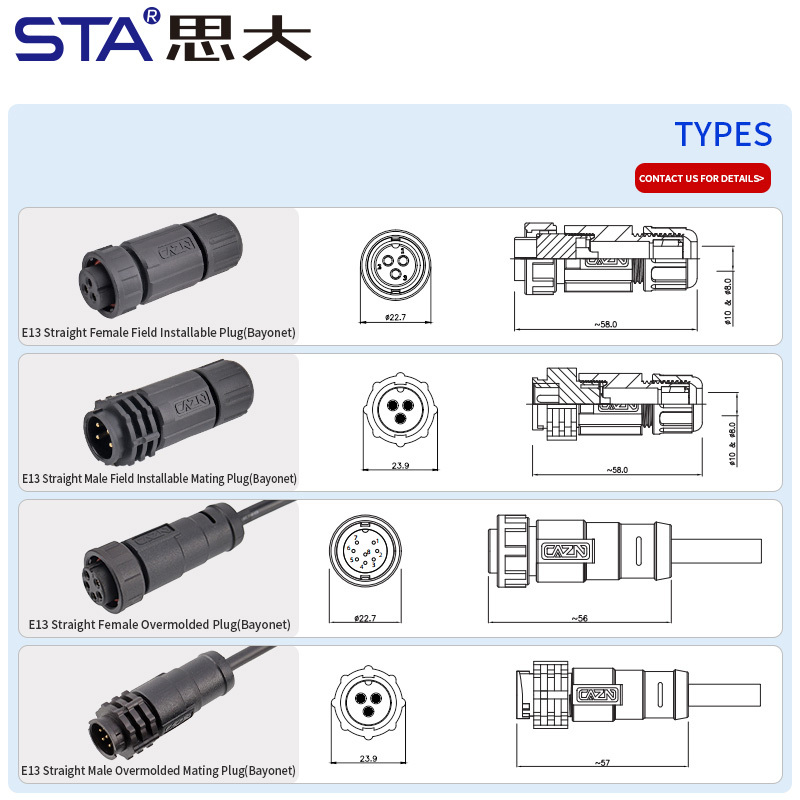

4. Is field assembly supported?
Yes, Field Installable and Overmolded versions are available.
